Hello everybody,
I am new to this forum and new to CATIA VBscripting/VBA and Im having some difficulty understanding some concepts. I hope someone here will be so kind to explain a few things to me.
I recorded a macro that intersects a line with a surface (see code below).
1. Now the first thing I don't understand is why the first element, the line, is defined as a parameter. Could anyone explain to me why this is done like this? Is it not just a hybridshape like the surface?
2. The second thing I am having trouble with is that in my part I have another geometrical set of lines which have been created earlier, now when I rerun the macro the line in that set is selected for the intersect, how do I control this? I have been trying to figure out a way to properly reference this but have not been able to figure it out.

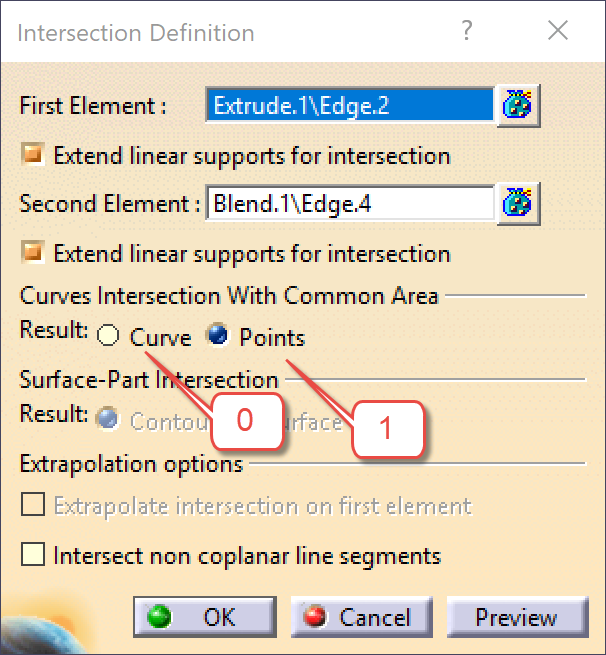

3. What does the PointType property control and what other options are there? the catia documentation only gives me the following:
Property PointType( ) As long
Returns or sets the PointType flag for intersect.
Any help is highly appreciated.
Thanks
I am new to this forum and new to CATIA VBscripting/VBA and Im having some difficulty understanding some concepts. I hope someone here will be so kind to explain a few things to me.
I recorded a macro that intersects a line with a surface (see code below).
1. Now the first thing I don't understand is why the first element, the line, is defined as a parameter. Could anyone explain to me why this is done like this? Is it not just a hybridshape like the surface?
2. The second thing I am having trouble with is that in my part I have another geometrical set of lines which have been created earlier, now when I rerun the macro the line in that set is selected for the intersect, how do I control this? I have been trying to figure out a way to properly reference this but have not been able to figure it out.
3. What does the PointType property control and what other options are there? the catia documentation only gives me the following:
Property PointType( ) As long
Returns or sets the PointType flag for intersect.
CODE --> VBSCRIPT
Language="VBSCRIPT"
Sub CATMain()
Set documents1 = CATIA.Documents
Set partDocument1 = documents1.Item("Part1.CATPart")
Set part1 = partDocument1.Part
Set hybridShapeFactory1 = part1.HybridShapeFactory
Set parameters1 = part1.Parameters
Set hybridShapeLineExplicit1 = parameters1.Item("Line.1")
Set reference1 = part1.CreateReferenceFromObject(hybridShapeLineExplicit1)
Set hybridShapeOffset1 = part1.HybridBodies.Item("GeoSet1").HybridBodies.Item("GeoSet2").HybridShapes.Item("Offset.Surface")
Set reference2 = part1.CreateReferenceFromObject(hybridShapeOffset1)
Set hybridShapeIntersection1 = hybridShapeFactory1.AddNewIntersection(reference1, reference2)
hybridShapeIntersection1.PointType = 0
Set hybridBody3 = part1.HybridBodies.Item("GeoSet1").HybridBodies.Item("GeoSet2").HybridBodies.Item("GeoSet3")
hybridBody3.AppendHybridShape hybridShapeIntersection1
part1.InWorkObject = hybridShapeIntersection1
part1.Update
End Sub Any help is highly appreciated.
Thanks





RE: New to Catia VB, creating intersection
1. The first "element" in the line is a parameter because the line likely has no history. Does the line have a red lightning bolt on it...it is not modifiable? If so, CATIA considers these elements parameters. If the line had history, it would not appear as a parameter.
2. I am not sure what you are asking here. Do you want to have the next line intersected each time the macro is run? If so, you can just set up a loop. I would need the tree to understand the structure.
But, if you had a part with one geoset called "Lines" and another geoset called "Intersects" you could do something like the following (the code is not complete and will not work...it is just an example. If you give more details, we can try to get something that works for you.
CODE --> VBA
'Declare the geosets where you will get lines and store intersects Dim oLinesGeoset as HybridBody Dim oIntersectsGeoset as HybridBody 'set the geosets set oLinesGeoset = CATIA.ActiveDocument.Part.HybridBodies.Item("Lines") set oIntersectsGeoset = CATIA.ActiveDocument.Part.HybridBodies.Item("Intersects") Dim oLine as AnyObject 'I'm not sure what the line type For i = 1 to oLinesGeoset.hybridshapes.count
'Get the next line to intersect
Set oLine= oLinesGeoset.Hybridshapes.item(i)
'Make a reference to the line
Set reference1 = CATIA.ActiveDocument.Part.CreateReferenceFromObject(oLine)
'make an intersect
Set hybridShapeIntersection1 = hybridShapeFactory1.AddNewIntersection(reference1, reference2)
'Store the intersect in the intersects geoset
oIntersectsGeoset.AppendHybridShape hybridShapeIntersection1
'Local update the intersect
hybridShapeIntersection1.Compute
Next 3. I am not sure what PointType does
RE: New to Catia VB, creating intersection
Thanks for your reply, I highly appreciate it.
What Im trying here is only part of a slightly bigger project. Ultimately I want to copy and paste a selected part multiple times and constrain it to a user selected set of geometry (note im working in a product). So the idea is that the user selects a bunch of lines (using SelectElement3 method) and a (curved) mating surface. The macro will then create an intersection with the line and surface, the resulting point will be used to constrain the copied part as well as the original line.
Initially my idea was to ask the user to select lines as well as points and then match these, but I was having difficulty matching the line to the correct point, the result was that the copied parts were flying around in space. The other issue I ran into here is the same as point 2 where I couldn't figure out how to properly reference the line, e.g. There are two lines named Line.1 in my part, but these are in different geo. sets. I think CATIA has another internal naming of features besides the one displayed in the tree?? it looked like the macro was selecting the first line made...
My intention is to eventually set-up a loop and then go through all the lines selected by the user, I was just trying to get the intersection part right first.

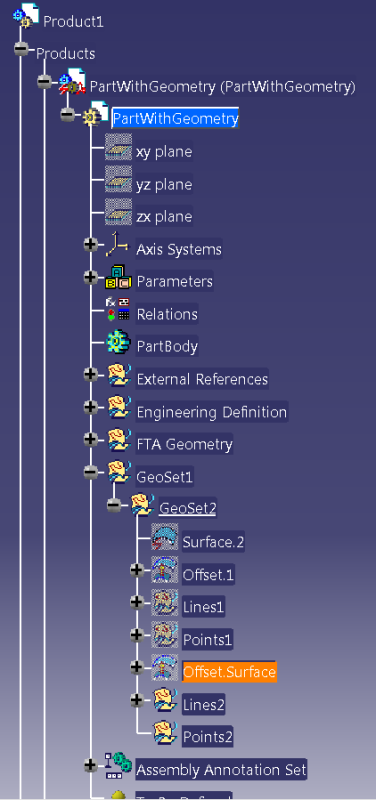

My tree (for this initial test) looks something like this:
There is another part still in the product that cant be seen on the screenshot, the line I want to refer to is in the set Lines2, whereas another line with the same name exists in Lines1. (although I would also use the tool for the lines in 'Lines1')
I want to be able to use the tool for different projects and allow the user to select the lines he/she wants therefore there is no guarantee the tree will look the same everytime
To get back to point 1. thanks, indeed it is an isolated element so at least that's cleared up :)
Thanks again for your help
RE: New to Catia VB, creating intersection
step 1 check if selection is already filled with lines and 1 surface, if not ask user to make selection and check content (x lines and 1 surface) when done.
for each line in selection create intersection with selected surface
you can start with the following code and finish it...
CODE --> VBA
Private surfRef As Reference Private lineRefCollection As Collection Sub CATMain() selectionOK = Fasle Set lineRefCollection = New Collection If CATIA.ActiveDocument.Selection.Count2 > 2 Then selectionOK = checkSelection() ' you do the SelectElement2 here ' but you can check selection again to make sure you have line(s) and one surface If selectionOK = False Then End Dim HSF As HybridShapeFactory Set HSF = CATIA.ActiveDocument.Part.HybridShapeFactory Set hybridBody3 = CATIA.ActiveDocument.Part.HybridBodies.Item("GeoSet1").HybridBodies.Item("GeoSet2").HybridBodies.Item("GeoSet3") For Each refLine In lineRefCollection Set hybridShapeIntersection1 = HSF.AddNewIntersection(refLine, surfRef) hybridBody3.AppendHybridShape hybridShapeIntersection1 Next refLine CATIA.ActiveDocument.Part.Update End Sub Function checkSelection() As Boolean checkSelection = Fasle Dim theSel As Selection Set theSel = CATIA.ActiveDocument.Selection nbFace = 0 nbLine = 0 For i = 1 To theSel.Count2 itemTypeName = TypeName(theSel.Item2(i).Value) Select Case itemTypeName Case "Face", "PlanarFace" nbFace = nbFace + 1 Set surfRef = theSel.Item2(i).Reference Case "HybridShapeLineExplicit", "HybridShapeLinePtPt", "RectilinearMonoDimFeatEdge", _ "HybridShapeLineExplicit", "RectilinearTriDimFeatEdge", "RectilinearBiDimFeatEdge" ' You add all type of line/rectiline edge you want above nbLine = nbLine + 1 lineRefCollection.Add theSel.Item2(i).Reference End Select Next If nbLine >= 1 And nbFace = 1 Then checkSelection = True End Functionindocti discant et ament meminisse periti
RE: New to Catia VB, creating intersection
sorry for big picture i just realized it is because I have 4K screen and scale 200%. I'll try to reduce size next time :)
