How to do this with sheetmetal feature

How to do this with sheetmetal feature

How to do this with sheetmetal feature

(OP)
Hi all,

I would like to know if there is anyway of doing this with a sheetmetal feature.

Thanks!


Airin
NX Designer

RE: How to do this with sheetmetal feature

Draw a centerline across, then use the bead feature. Lanced ends.

Regards,
Tomas

RE: How to do this with sheetmetal feature

(OP)
Thank you Toost!

It works :)

Airin
NX Designer

RE: How to do this with sheetmetal feature

Why you do not do it with sheet metal contour ?

RE: How to do this with sheetmetal feature

(OP)
I have to say I´m a novice at sheetmetal.

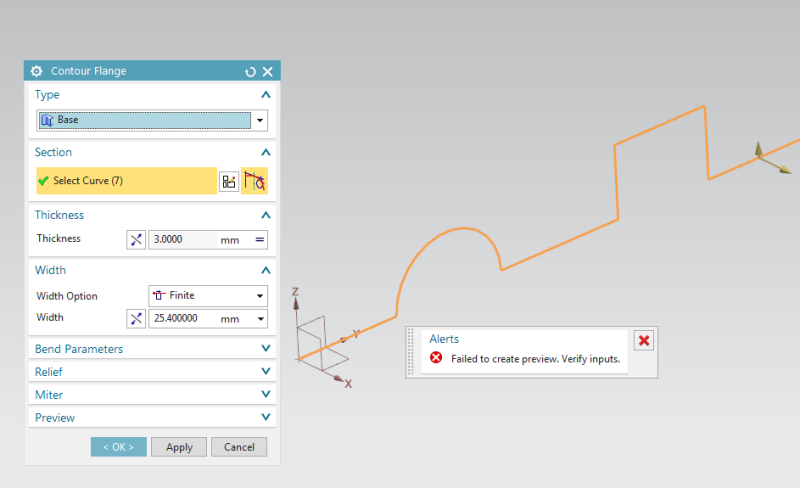

My first attempt was Contour flange but an error message was displayed:



Now that you´ve said this I´ve tried again:

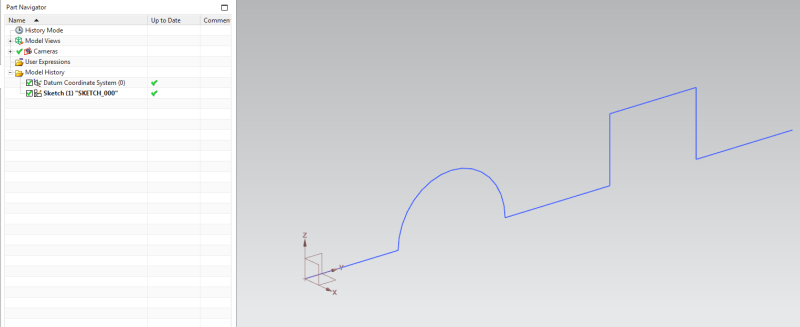

1Step:

2step:

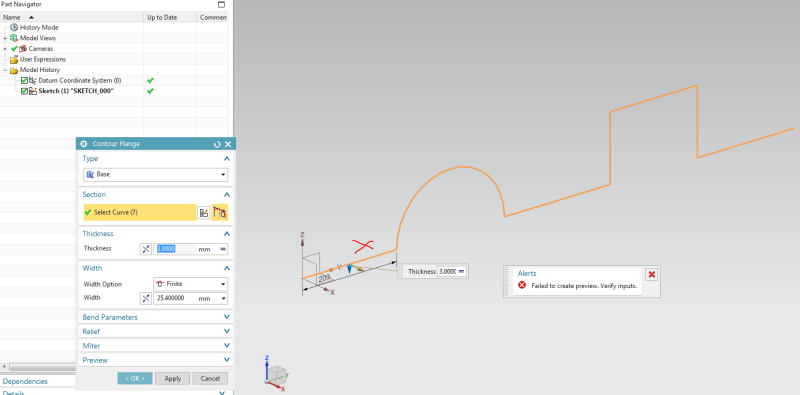

3step:

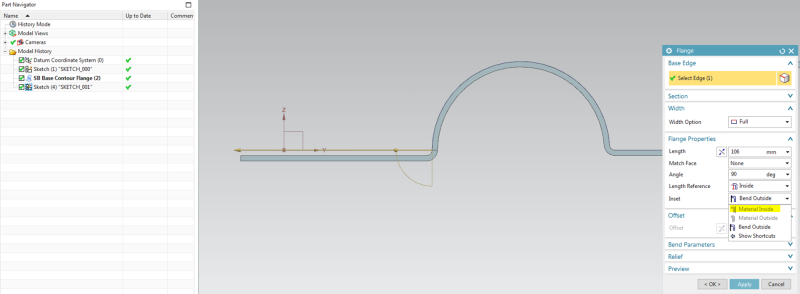

4step: (make a contour flange without the last curve and then make a normal flange)
But I can´t set inside material!

workaround: (make fillets in the sketch)

Airin
NX Designer

RE: How to do this with sheetmetal feature

Yes you right
it seems like a buggy
I tried it and it allow me to finishe half
of the profile only.

RE: How to do this with sheetmetal feature

That's a pretty ridiculous bug!
( I tried it in NX8.5 and, yes, it's a bug.)

Will you report it to GTAC ?

Regards,
Tomas

RE: How to do this with sheetmetal feature

(OP)
Yes, I´m doing right now.thumbsup2

Airin
NX Designer
