Ansys ACP Pre Bad Mesh Problem

Ansys ACP Pre Bad Mesh Problem

(OP)
Hi,

I'm newish to Ansys ACP Pre.
I've created a composite layup on my tidal turbine blade, but when I go into mechanical I notice that the plies on the inside have created large gaps in the mesh.
I'm unsure what I've done wrong, and I need some help to amend this.
I've attached an imagine of the inside of the blade.


Many thanks,
Harry

RE: Ansys ACP Pre Bad Mesh Problem

Please attach a picture of the geometry before meshing.

RE: Ansys ACP Pre Bad Mesh Problem

(OP)

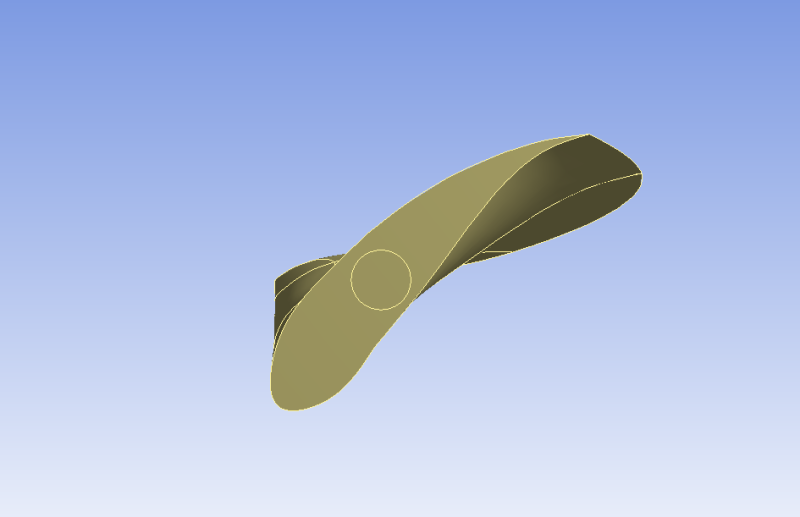

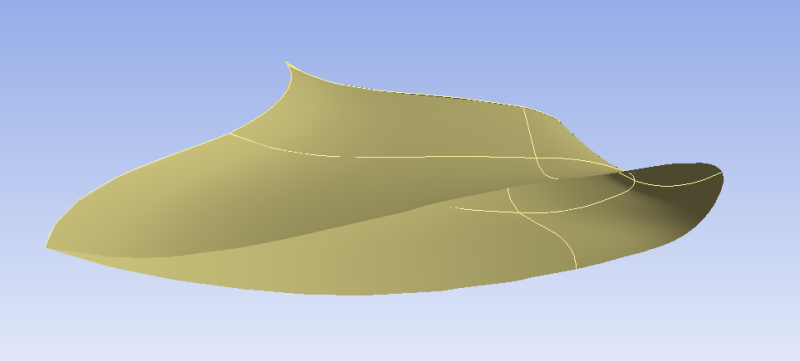

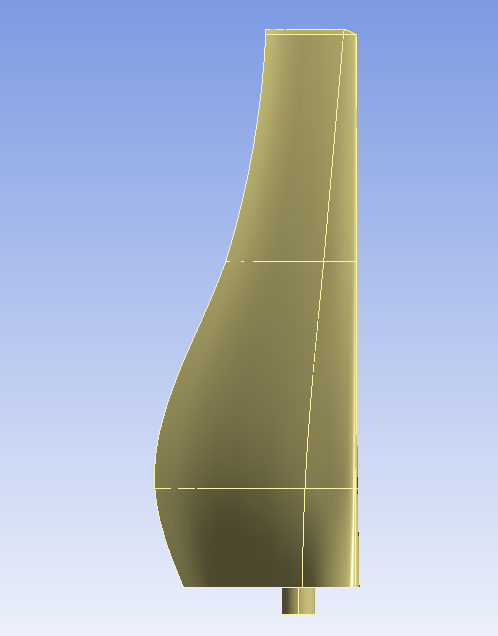

Hi, Thanks for the reply. Here's some screenshots of the blade.
