Create a Mirror Part
3

Create a Mirror Part

Create a Mirror Part

(OP)
I have a part with a job number, the next job number is the same assembly but the main part is the mirror of the first one so I want to create a new part in a different folder and that part will be the mirror of the first one. So far I have tried mirror assembly but it doesnt create a different part in the other folder it just creates a mirror part in the first assembly and I can't modify the features of that part.

Is what I am asking possible?

Thank you

RE: Create a Mirror Part

Hi pllmoreau,

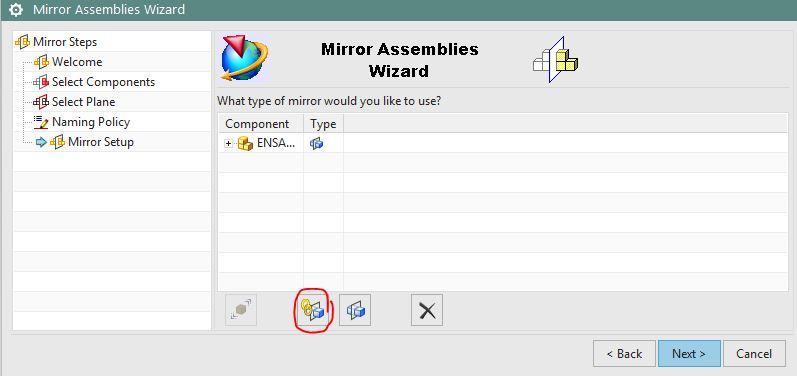

When you create a mirror assembly you have three options:
- reuse and reposition (not create new files)
- create a non associative part
- create an associative part

With the last one you will create a new file which contains a linked body to the original.

Are using the first one?? reuse and reposition?

Airin
NX Designer

RE: Create a Mirror Part

(OP)
Hello I am not using the first one, I used the non-associative link, my question was more if it was possible to have a mirrored part the way you clone a part, with all the features instead of working with links to the first part.

RE: Create a Mirror Part

1. Open the part, in Assembly Navigator be sure that WAVE Mode is selected
2. R-click the part, WAVE, Create Linked Mirror Part
3. Name the part, choose Objects to Mirror, select Mirror Plane, Non-exact Mirror - Keep Broken Links
4. Modify mirrored part and save
5. Create New Parent (if not top-down modeling} and name the assembly
6. Add the original part you mirrored from

Best regards

RE: Create a Mirror Part

he got to have wave license for that i think

will you do diferent things on that "mirror" ?

u can reuse and reposition then make unique, i think its what you want (but will not be associative); for associative and diferent results u can link and fix current timestamp before the diferent Feature.

NX8.5 - NX9 - NX 10 - NX11

RE: Create a Mirror Part

Quote (pllmoreau)

my question was more if it was possible to have a mirrored part the way you clone a part, with all the features instead of working with links to the first part.

No, at least there is no automated way to do it. You can, of course, build the mirror part manually with all the features mirrored w.r.t. the first part.

www.nxjournaling.com

RE: Create a Mirror Part

(OP)
I will do different things but what I was wondering is if I will be able to modify an existing feature, so far all the mirror possibilities I have tries only made linnks not copies of the features

RE: Create a Mirror Part

"the way you clone a part, with all the features"

What I understand is that you want a mirrored part with all the features (not just a linked body), but with these features creating a mirror body....Is what you want?

If it´s that...sadly, there is no possibilty.

Airin
NX Designer

RE: Create a Mirror Part

(OP)
Yes that is what I want, that's what I was afraid of...

Thank you for your answers!

RE: Create a Mirror Part

Hi,
Try rhe following steps
- save as your first part
- add a mirror body feature at the end
- delete the original body with delete body feature
- create interpart expression on all features with the original part if needed

Make it sense ?

It should be done with à VB journal

Regards
Didier Psaltopoulos
http://www.psi-cad.fr
