Thicken Surface Edge condition

Thicken Surface Edge condition

Thicken Surface Edge condition

(OP)
Hi All,

I've made a model out off various surfaces and performed a thicken surface. Because this product wil be made with injection molding i'd like the edges of the thicken surface to be oriented parallel on the parting plane of the mould (cZ).

Can this be done easily?


Kind Regards,

Lars.

Lars
NX10.0.3.5 native
Solid Edge
Inventor

RE: Thicken Surface Edge condition

Taper from edge ?

Regards,
Tomas

RE: Thicken Surface Edge condition

(OP)
Yes,

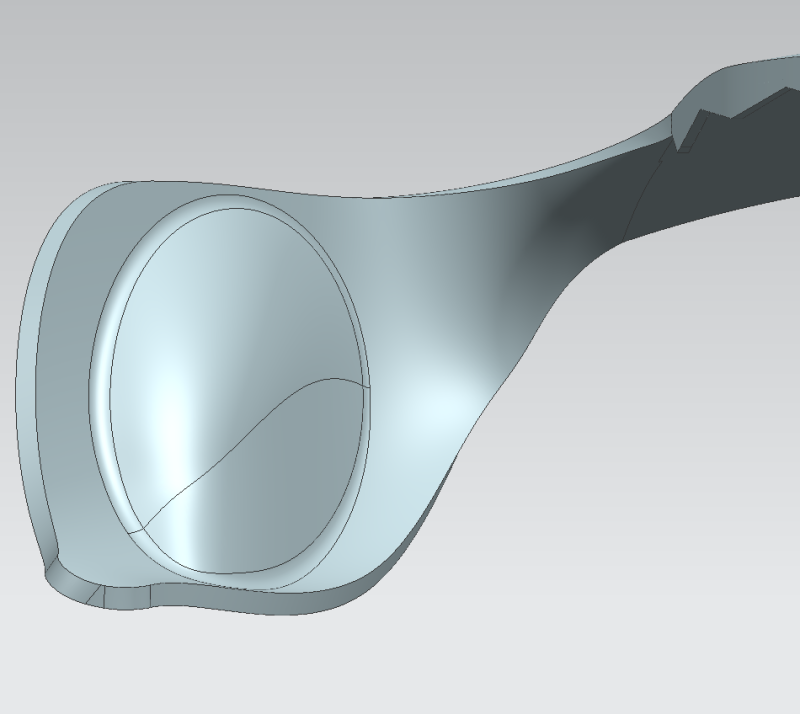

See the pic. The parting line of the mould is vertical. I want the edges of the model parallel or tapered in relation to the parting line.





Lars
NX10.0.3.5 native
Solid Edge
Inventor
