Catia V5 windows arrangement

Catia V5 windows arrangement

Catia V5 windows arrangement

(OP)
Hello to all,

When I run code to cursor everything works well (Catia windows arranged vertically).
But when I run the same code in auto mode nothing happens (no arrangement).

CODE --> vb.net

Dim Part As Document
        Part = myCatia.Documents.Open("xxxxxxxxxxxxxxxx.CATPart")
        Part = myCatia.ActiveDocument

        '----Arrange Catia V5 windows----
        Dim CatiaWindows As Windows
        CatiaWindows = myCatia.Windows
        CatiaWindows.Arrange(CatArrangeStyle.catArrangeTiledVertical)

        '----Feature select and copy----
        Dim MySelection As Selection
        MySelection = myCatia.ActiveDocument.Selection
        MySelection.Search("CATStFreeStyleSearch.GSM3DCurveOffset + CATGmoSearch.GSM3DCurveOffset,all")
        myCatia.StartCommand("copy")

I just want to open file, copy named feature and past it into another CATPart using SelectElement2.
I dont want to switch between windows that is why I want to use arrangement.

Any help will be greatly appresiated,

Jenia Ladkov.

RE: Catia V5 windows arrangement

what you are saying is that the windows don't become arranged?

CODE --> vb.net

'----Arrange Catia V5 windows----
        Dim CatiaWindows As Windows
        CatiaWindows = myCatia.Windows
        CatiaWindows.Arrange(CatArrangeStyle.catArrangeTiledVertical)

With me is working fine.

Tiago Figueiredo
Tooling Engineer

RE: Catia V5 windows arrangement

(OP)
Works fine if I run code line by line (F11).
In auto mode I get following


Only works for me if I move code after message box right before selection

CODE --> vb.net

MsgBox("Select Geometrical set where copied element will be inserted.", vbOKOnly, "Features to copy")
        Dim CatiaWindows As Windows
        CatiaWindows = myCatia.Windows
        CatiaWindows.Arrange(CatArrangeStyle.catArrangeTiledVertical)
        status = PasteSel.SelectElement2(ObjectFilter, "Select Geometrical set...", False)
        myCatia.StartCommand("paste")

RE: Catia V5 windows arrangement

Do you really need that message box? Don't forget that you a message on the status bar provided SelectElement2.

Probably Catia don't have time to arrange the windows before message box.


you can try the following if you really want that message:

CODE --> vb.net

Dim CatiaWindows As Windows
        CatiaWindows = myCatia.Windows
        CatiaWindows.Arrange(CatArrangeStyle.catArrangeTiledVertical)
        status = PasteSel.SelectElement2(ObjectFilter, "Select Geometrical set...", False)
        myCatia.StartCommand("paste")
myCatia.RefreshDisplay = True
MsgBox("Select Geometrical set where copied element will be inserted.", vbOKOnly, "Features to copy")

Tiago Figueiredo
Tooling Engineer

RE: Catia V5 windows arrangement

(OP)

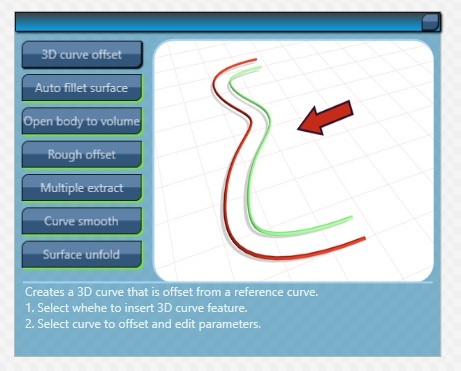

Tiago thanks for the suggestion. I don't need any messages in my applications because I know exactly how it works. When it comes to users it's like what the heck do I have to do. That is why I add images, explanations or whatever during program run.

RE: Catia V5 windows arrangement

Amazing. By the way, really nice interface

Tiago Figueiredo
Tooling Engineer

RE: Catia V5 windows arrangement

(OP)
Completely switched to WPF.

RE: Catia V5 windows arrangement

I need to learn it.

Tiago Figueiredo
Tooling Engineer
