help copy PMI annotation into drafting NX10

help copy PMI annotation into drafting NX10

help copy PMI annotation into drafting NX10

(OP)
I have model that has PMI annotations (see pic)
but I need to create a drawing/PDF with all of the annotations.
All annotations are in a base view labeled GDT, when I import that base view on drawing Annotations do not show up (see pic).
Even if I turn on all layers manually, I see alot of geometry in view but not annotations.
We dont use views in my company, so what am i doing wrong?
Thanks
NX10

RE: help copy PMI annotation into drafting NX10

Have you inherited the PMI to the drawing? Check your drafting view settings: common -> PMI -> inherited PMI.

www.nxjournaling.com

RE: help copy PMI annotation into drafting NX10

(OP)
Yes I turned on to inherit PMI in the settings of the view before I placed it. There are three different options I think. I tried all three. No difference.

RE: help copy PMI annotation into drafting NX10

(OP)

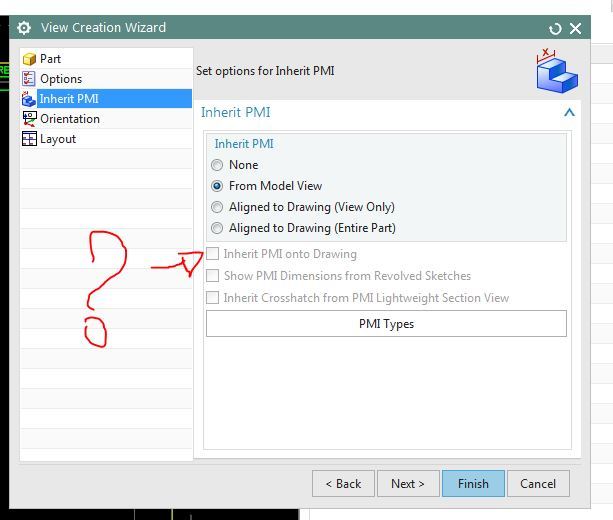

"Inherit PMI onto Drawing" option is not available when I am placing my view. Is that why I am not getting them to display?

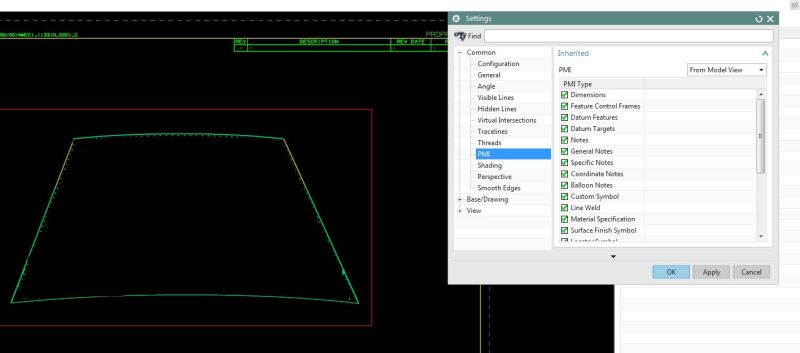

Here is how PMI settings looks after I placed the view already.
