Subcript text in dimension prefix

Subcript text in dimension prefix

Subcript text in dimension prefix

(OP)
Hi to all,

I would like to add this prefix to my dimension, but I don´t know how.

At the moment I´m just adding a normal text close to the dimensions.

Airin
NX Designer

RE: Subcript text in dimension prefix

Hello,

Is that pic from CATIA? Do you need this in Drafting design workbench? Do you want it by script or manually?

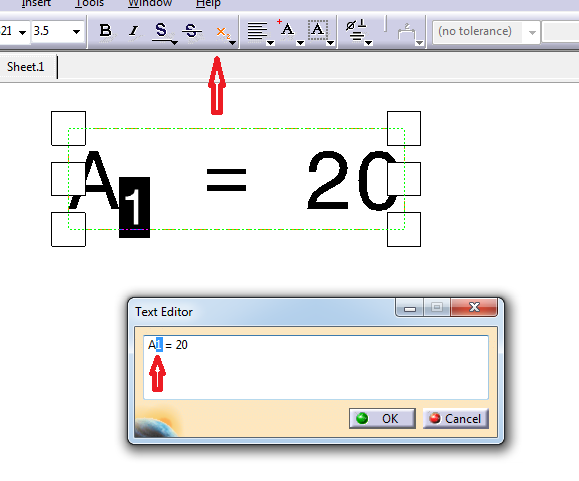

Here is the manual method:



Hope it helps.
Calin

RE: Subcript text in dimension prefix

And here is how you do it by script:

CODE -->

Sub myText()
    Dim oDoc As DrawingDocument
    Set oDoc = CATIA.ActiveDocument

    Dim oView As DrawingView
    Set oView = oDoc.Sheets.ActiveSheet.Views.Item(2)

    Dim oText As DrawingText
    Set oText = oView.Texts.Add("A1 = 120", 10, 10)
    oText.SetParameterOnSubString catSubscript, 2, 1, 1

End Sub

Hope it helps,
Calin

RE: Subcript text in dimension prefix

(OP)
Thanks Calin,

But my doubt is in a dimension, not in a normal text.

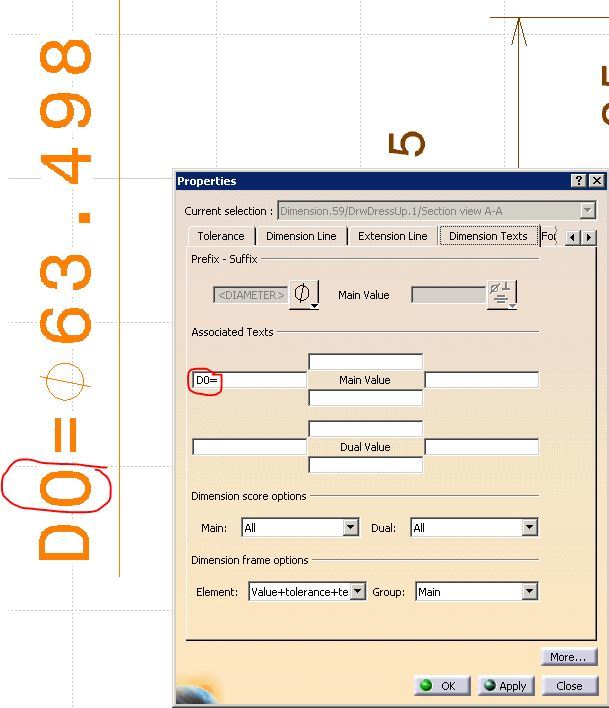

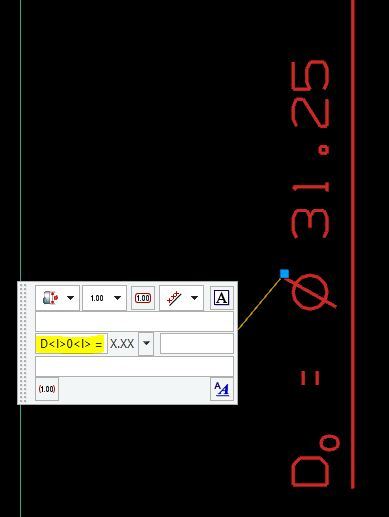

This pic is from NX. (I´m NX designer fighting with Catia). In NX you just have to add the text between <l>text<l>



I´m doing my drawing manually, not by script.

Airin
NX Designer

RE: Subcript text in dimension prefix

Create a normal text with << D0 = >> then right click on text -> Positional Link -> Create and select/click the dimension. Now, anywhere that dimension goes, the text will follow.

I don't know other methods.

Sorry.
