hello NX Experts,

i have a query with nx drafting,

I added Feature dimension as PMI but
i cant get Feature PMI dimension in drafting view

and one more thing , i wanna adjust that dimension in view , recently i cant adjust that feature PMI dimension also , i thing after adjustment i can see.....

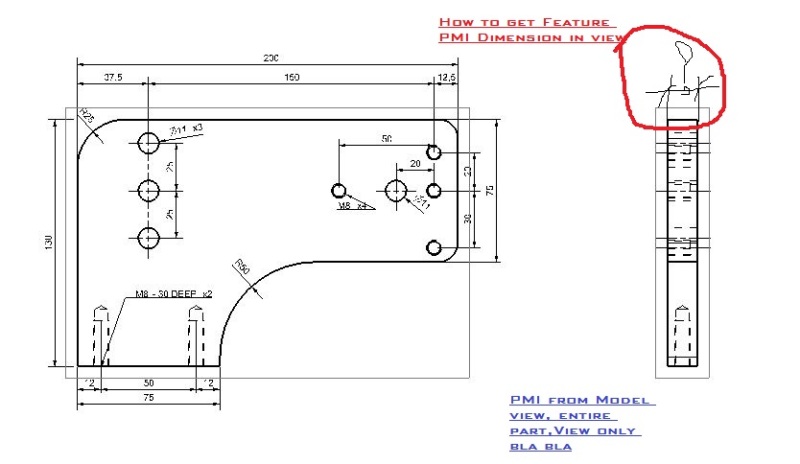

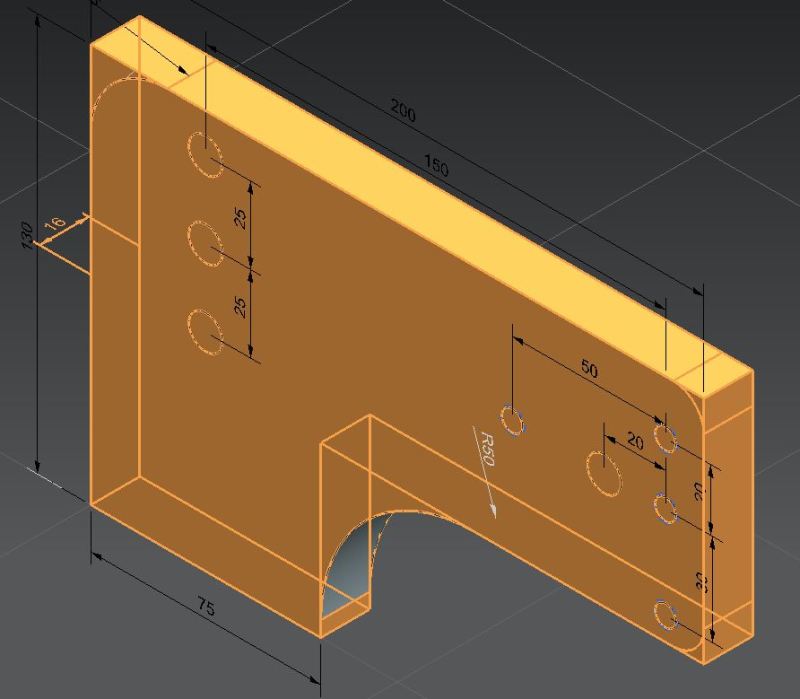

EG. i attach image file , in that i added Feature as PMI dimension in model ,but i cant get it in Side view, i also set drafting in reference = PMI from model view ,Entire part, show only bla bla

how to get that PMI dimension in Drafting view ,

any body have idea for it!!!!!!!










Best regards,
Thomas Roman
