Arrow tail length in Drafting

Arrow tail length in Drafting

Arrow tail length in Drafting

(OP)
NX 9.0
Any way to adjust the length of the arrow "tail" in Drafting? I've looked in the usual settings (both for the dim itself, and in Drafting Preferences) and can't see where that length is controlled. As shown in the example, all I want to do is shorten it by a smidgen so it doesn't run into the other extension line. And, NO, I don't want to fiddle with putting one of those half-as**d "breaks" ("gaps"?) in there.
Thanks! P.L., the old, frequently exasperated, I-DEAS user wink

RE: Arrow tail length in Drafting

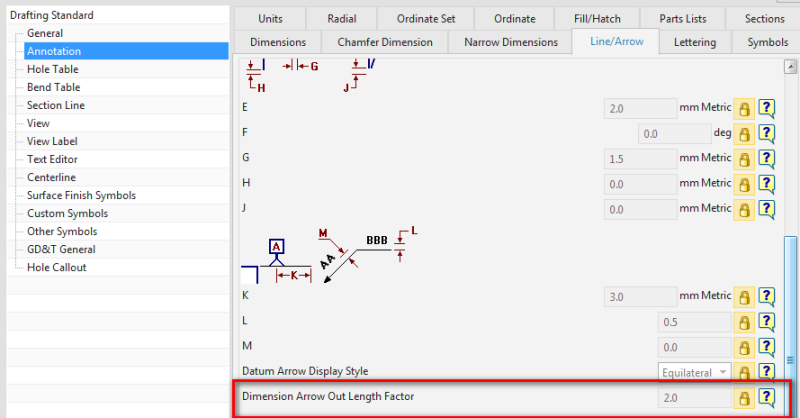

In customer defaults in the Drafting standard it can be changed....
it is a factor...

Ronald van den Broek
Senior Application Engineer
Winterthur Gas & Diesel Ltd
NX9 / TC10.1.2
HPZ420 Intel(R) Xeon(R) CPU E5-1620 0 @ 3.60GHz, 32 Gb Win7 64B
Nvidea Quadro4000 2048MB DDR5

HP Zbook15
Intel(R) Core(TM) i7-4800MQ
CPU @ 2.70 GHz Win7 64b
Nvidia K1100M 2048 MB DDR5

RE: Arrow tail length in Drafting

Bear in mind that when you change that setting, it will affect all newly created dimensions, but it will not change existing ones.

www.nxjournaling.com

RE: Arrow tail length in Drafting

(OP)
Thanks for the screen shot, nutace, but I don't have a Drafting Standards choice when I go to File, Utilities, Customer Defaults. There's only Drafting and the choices under that. I suspect that I don't have permission to go in and change the Drafting Standards. Or perhaps we're running different versions?

RE: Arrow tail length in Drafting

You will find it on the General section under Drafting....

Ronald van den Broek
Senior Application Engineer
Winterthur Gas & Diesel Ltd
NX9 / TC10.1.2
HPZ420 Intel(R) Xeon(R) CPU E5-1620 0 @ 3.60GHz, 32 Gb Win7 64B
Nvidea Quadro4000 2048MB DDR5

HP Zbook15
Intel(R) Core(TM) i7-4800MQ
CPU @ 2.70 GHz Win7 64b
Nvidia K1100M 2048 MB DDR5

RE: Arrow tail length in Drafting

(OP)
Well, I found someone else asking the same question over at the Siemens Community page: http://community.plm.automation.siemens.com/t5/NX-...
with the same solution.

So, since I don't have permissions to mess with the Drafting Standards, I'm simply back to being an exasperated user, as usual. tongue
BTW, my coworker did find a trick to change the length by changing the font size default. Might try that workaround ... no one will notice a little font size change ...

RE: Arrow tail length in Drafting

(OP)

nutace (Mechanical)
3 Aug 16 15:35
You will find it on the General section under Drafting....


OK, thanks, now I'm looking in the proper section - after hitting the Customize button - but unfortunately everything has a lock on it. Sigh.
