Query about Nx wall thickness check.
3

Query about Nx wall thickness check.

Query about Nx wall thickness check.

(OP)

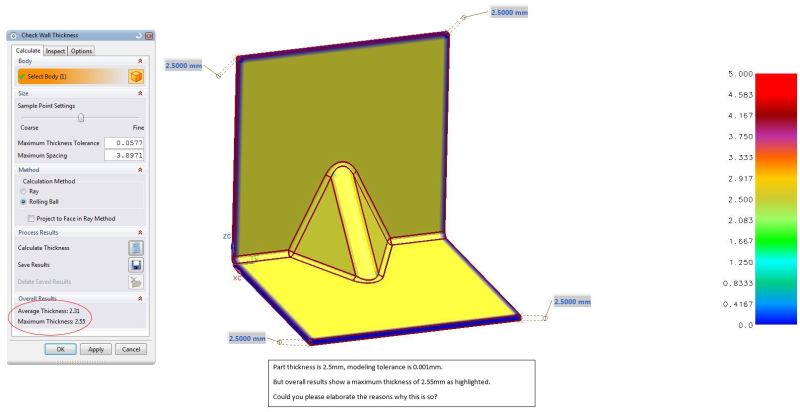

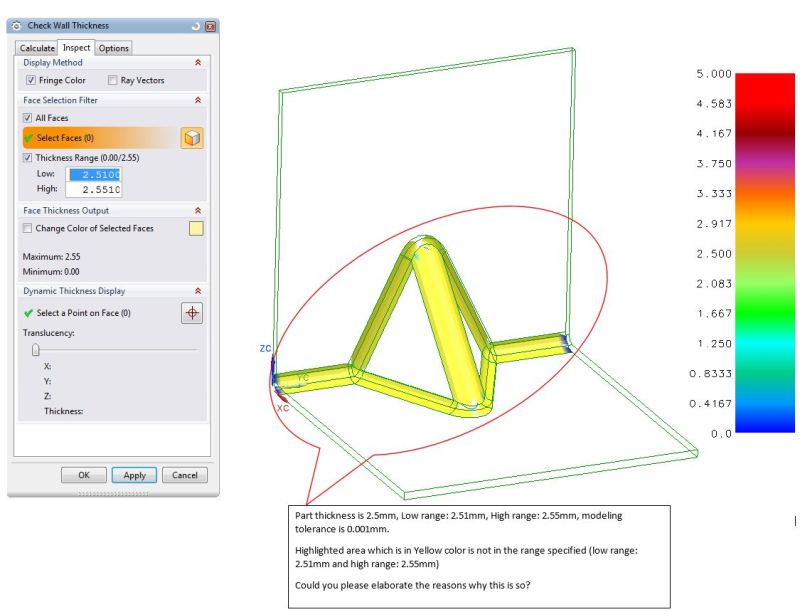

I have couple of query about Nx wall thickness check command.

1.

2.

I have uploaded the NX part file which i have used for wall thickness analysis.

http://files.engineering.com/getfile.aspx?folder=1...

Requesting you to go through above queries and let me know your valuable comments.


Thanks in advance,


Regards,
Sreeram

RE: Query about Nx wall thickness check.

3
Hi I would suggest reading the documentation for the wall thickness tool.

1)
* Modeling tolerance will not have any noticeable effect on the wall thickness tool.
* The radii deviation is due to tesselation difference between the surfaces, this become evident if you use a finer tolerance, rolling ball spacing, and adjust color fringes, see image below.


In comparison thickness calculated in GOM Inspect Pro


2) Read the documentation of how rolling ball works




RE: Query about Nx wall thickness check.

(OP)
Hi Petulf,

Thank you for your prompt reply :)))

The pictures which you have attached is not visible for me.
Could you upload it again?


Thanks,
Sreeram

RE: Query about Nx wall thickness check.

(OP)
Thank you very much petulf :) :)
