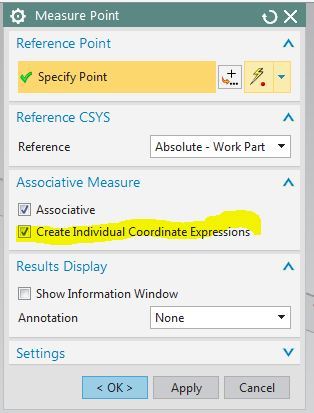

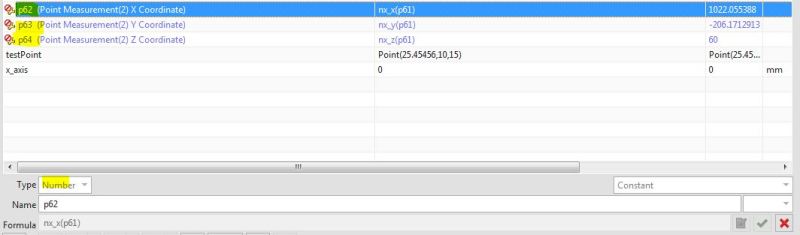

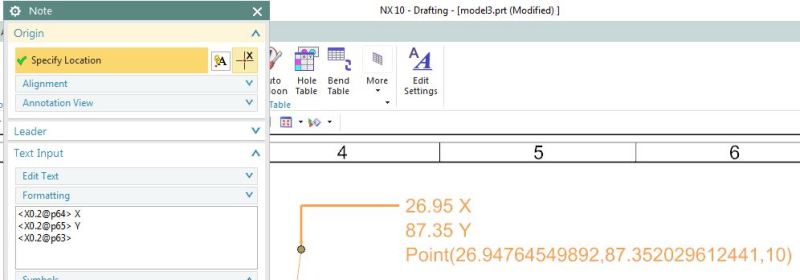

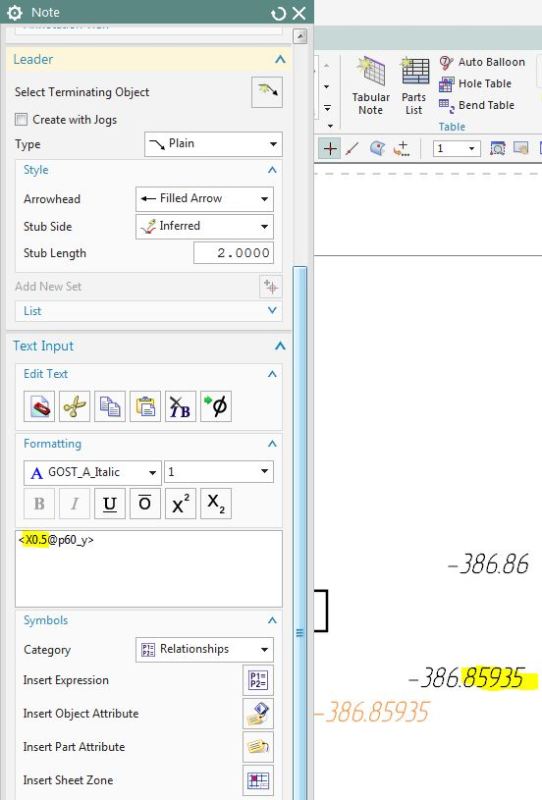

×
INTELLIGENT WORK FORUMS
FOR ENGINEERING PROFESSIONALS

Log In

Come Join Us!

Are you an
Engineering professional?
Join Eng-Tips Forums!
  • Talk With Other Members
  • Be Notified Of Responses
    To Your Posts
  • Keyword Search
  • One-Click Access To Your
    Favorite Forums
  • Automated Signatures
    On Your Posts
  • Best Of All, It's Free!
  • Students Click Here

*Eng-Tips's functionality depends on members receiving e-mail. By joining you are opting in to receive e-mail.

Posting Guidelines

Promoting, selling, recruiting, coursework and thesis posting is forbidden.

Students Click Here

Jobs

DECIMAL PLACES FOR A MEASUREMENT EXPRESSION

DECIMAL PLACES FOR A MEASUREMENT EXPRESSION

DECIMAL PLACES FOR A MEASUREMENT EXPRESSION

(OP)
Hi to all,

I have measurement a point with Analysis/Measure Point and I have created an expression with "Create Individual Coordinate Expressions".

Now, I have to insert this value in my drafting with a note. But this expression has a lot of decimal places. Someone know how to change the decimal places for an expression in a note?



Airin
NX Designer

RE: DECIMAL PLACES FOR A MEASUREMENT EXPRESSION

Hi,

In the Note operation pay an attention to Expression under the Formatting tab. It looks like <X0.8@attribute_id>. The value after "0" shows how many decimal places will be placed in note. See the picture:

RE: DECIMAL PLACES FOR A MEASUREMENT EXPRESSION

(OP)
Thanks Lockdain,

I tried to change this value before posting this thread, but I didn´t see any change.

But when I´ve seen your screen capture I´ve realized what was the problem!

It only works for X/Y/Z coordinate measurement separately because the value is a number.

But for Point Measurement it doesn´t work.


Airin
NX Designer

RE: DECIMAL PLACES FOR A MEASUREMENT EXPRESSION

It seems to be so. Maybe somebody will show the way to bear it, unfortunately i don't know any clear solution.
Or, from the other hand, you could manage point coordinates separately, adding them to expressions via Point Measurement feature:



It will save points XYZ-coordinates in a separated expressions:



And you would be able to handle them individually (e. g. to define the decimal places, since it would utilize Number type).

Red Flag This Post

Please let us know here why this post is inappropriate. Reasons such as off-topic, duplicates, flames, illegal, vulgar, or students posting their homework.

Red Flag Submitted

Thank you for helping keep Eng-Tips Forums free from inappropriate posts.
The Eng-Tips staff will check this out and take appropriate action.

Reply To This Thread

Posting in the Eng-Tips forums is a member-only feature.

Click Here to join Eng-Tips and talk with other members!


Resources
