Problem in Creating a split point on Catia v5

Problem in Creating a split point on Catia v5

Problem in Creating a split point on Catia v5

(OP)
Hello everyone,

I'm currently designing a drill bit on Catia v5, but I don't manage to complete the last step I want to do, which is creating the split point (135°, 4 facets). For the angle it is okay, but I don't manage to create the 4 facets. I'd like to do something like that:



And for now I've only got that:



But I don't find a way to create the split point. I tried some things such as creating a new sketch in a perpendicular plan (to the tip surface), but nothing worked. I tried to generate a revolution but wasn't working, either it pass through the drill bit, or it goes over the edges randomly.

Does someone have an idea? A tip?
Thanks for your help, I hope someone will be able to help me.

Loïc

RE: Problem in Creating a split point on Catia v5

As i can see from Catia screen it's not looking like something angular. Start from analysis of a drill.

RE: Problem in Creating a split point on Catia v5

(OP)
Thanks for your answer.

By angular what do you mean? Which angle are you talking about?

Thanks very much

RE: Problem in Creating a split point on Catia v5

(OP)
Finally, with tenacity I've been successful. Admins, you can close the thread.

Thks

RE: Problem in Creating a split point on Catia v5

Ok I did not check any value for real drill bit, and I simplified the main section but you can apply this to your construction:

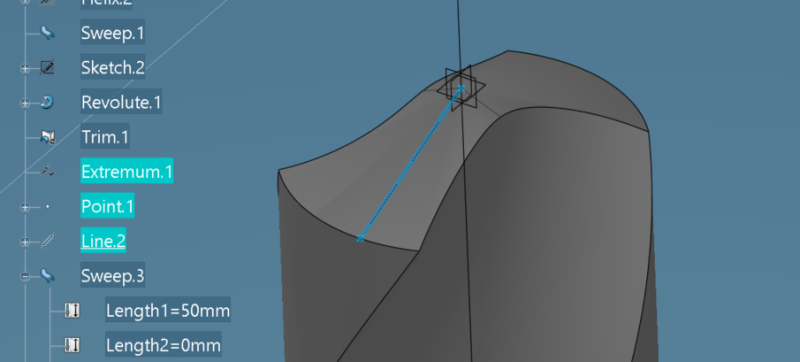

Create a line from drill bit tip to a location on the edge (I use extremum point):

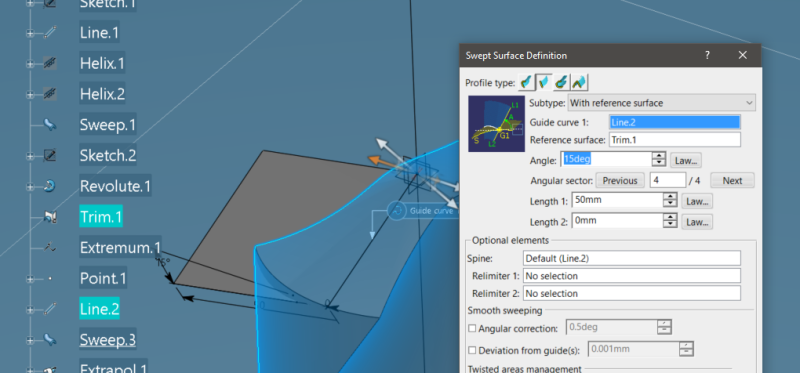

Create a Sweep Surface using the line as Guide Curve and the conical surface as Reference:

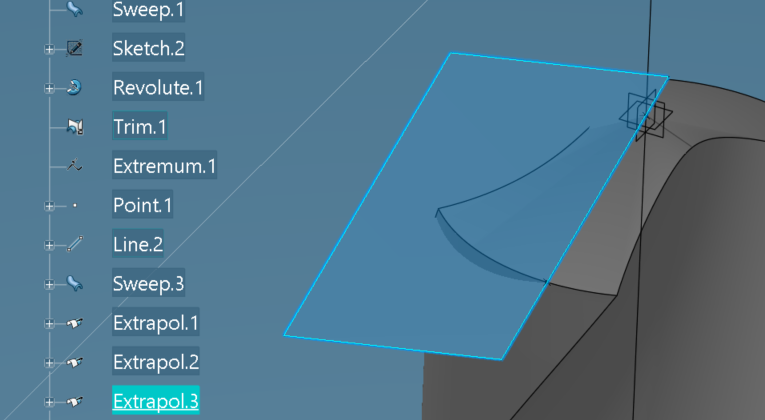

extrapole in 3 direction (not the edge from the line):


Symmetry twice (or rotate 180deg) and join (uncheck Check Connexity):

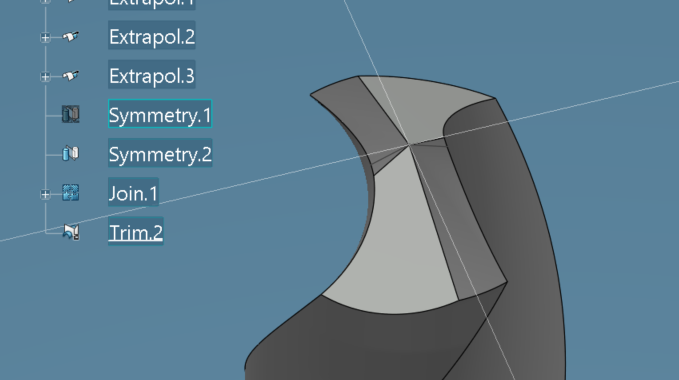

Trim with the drill bit surface:


You better check real drill bit geometry but I am confident something like that could help you.


Eric N.
indocti discant et ament meminisse periti

RE: Problem in Creating a split point on Catia v5

(OP)
Thanks you for your method, it is different from mine but seems to give a good result as well ;)
