Creating semieliptical crack

Creating semieliptical crack

Creating semieliptical crack

(OP)
Hi guys.

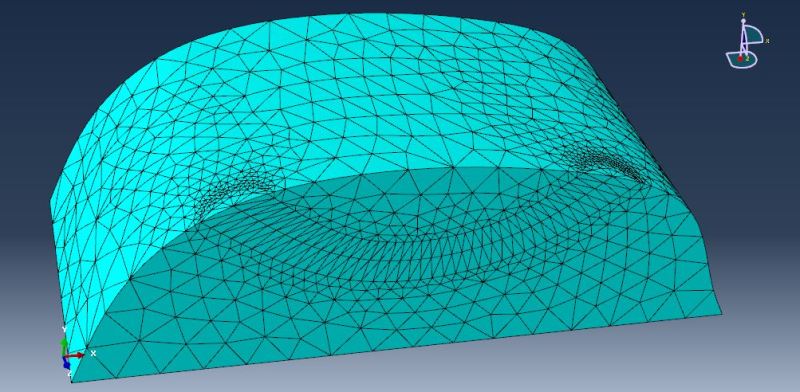

Anyone knows how to create semieliptical crack as the one in the attached photo? I'm having a problem with sketching on a curved surface. I need to make a circles on both crack edges to make a partition later on but I don't know how to do it. Anyone have any ideas?

Regards,

RE: Creating semieliptical crack

Hi mariomat83

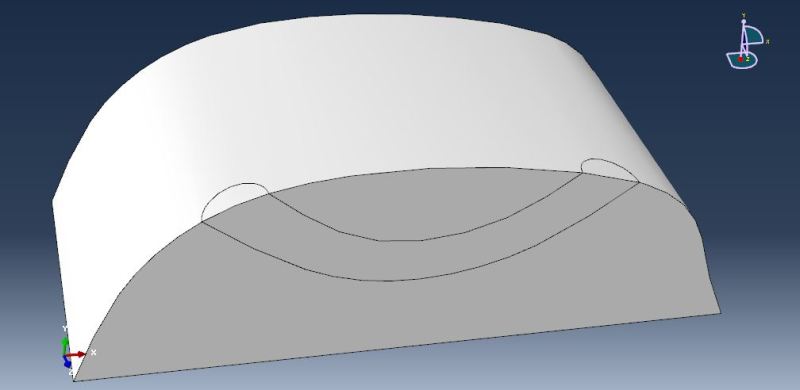

You mean something Like This ?


With Best Regards.
yassou.

RE: Creating semieliptical crack

(OP)
Yassou,

yes something like that but I need to use hexagonal type of elements. How did you managed to sketch on curved surface?

Regards,
