Product Constrains Analysis
4

Product Constrains Analysis

Product Constrains Analysis

(OP)
Catia V5 Sketcher has the Sketch Analysis in order to identify and show the under-constrained/over-constrain (the Diagnostic tool) geometry.
I was wondering if CATProduct has something similar.
I work with many assemblies and some of them have a lot of constrains.
It takes a lot of time to verify if the Product is fully constrain, so finding a way to solve this issue would be extremely beneficial and efficient.




CAD 2015

RE: Product Constrains Analysis

(OP)
Thank you Drew and Ferdo!

CAD 2015

RE: Product Constrains Analysis

(OP)

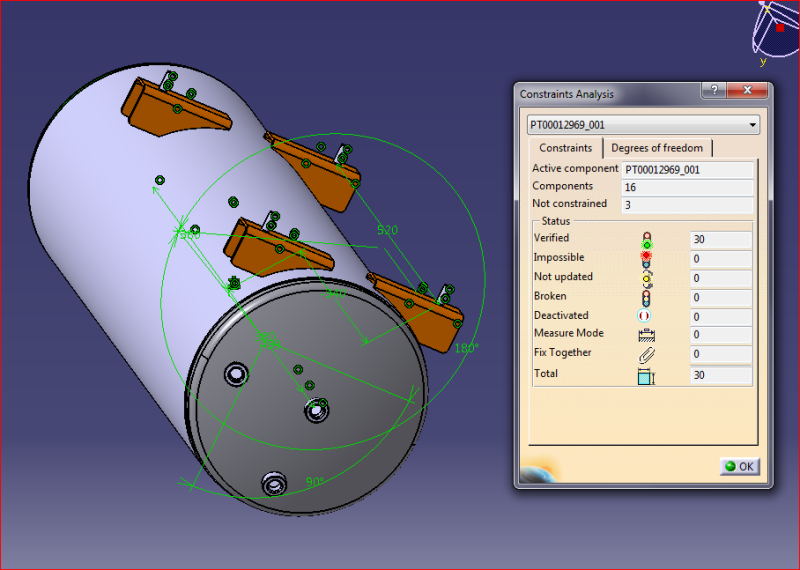

Please, have a look at the picture....
How could I find out which components are/are not not fully constrained?
What this picture says?




CAD 2015

RE: Product Constrains Analysis

(OP)
If I'm not wrong, the table shows that I have three not constrained components, right?

CAD 2015

RE: Product Constrains Analysis

Yes that is what the function says...

Also check the Degrees of freedom tab

Eric N.
indocti discant et ament meminisse periti

RE: Product Constrains Analysis

@CAD2015
Right. And make sure you're in the right product. What are you assembling? Is that a welded fluid container or tank of some sort? What are the units in the screenshot? Inches, millimeters?

Drew Mumaw
www.textsketcher.com
www.drewmumaw.com

RE: Product Constrains Analysis

2
I'm hoping to learn more about assembly constraint analysis from this thread.

Here's a simple little process I do to check my assembly constraints:
1. use the explode tool to move all the parts out of their constrained position
2. update the assembly to move all the parts back into position

The parts that are still in the exploded position are the parts that are not fully constrained.

RE: Product Constrains Analysis

(OP)
drewmumaw,

Yes, it is a fluid container. Units: mm.

CAD 2015

RE: Product Constrains Analysis

(OP)
Thanks Jackk. Good idea!

CAD 2015
