Drafting font issue

Drafting font issue

Drafting font issue

(OP)
For no rhyme or reason (that I can see) sometimes our drafting font (Arial) characters are 1/2 size of the regular text. Any suggestions?

Thanks

Windows 7
NX 10.0.3.5

NX 9.0.3.4

RE: Drafting font issue

can you provide an illustration of this ?


Regards,
Tomas

RE: Drafting font issue

(OP)

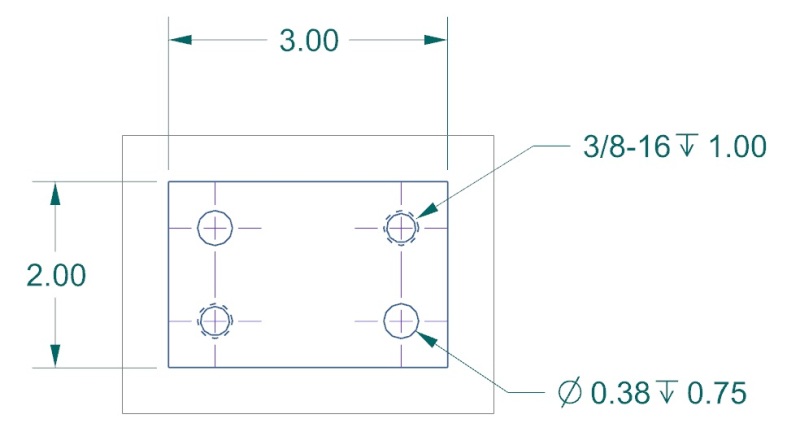

Here's a pic of two different files, both using Arial font. Look at the diameter and depth symbol for the differences.



Windows 7
NX 10.0.3.5

RE: Drafting font issue

For the symbol font file, you will want to use the "NX ANSI symbols". The option to change the symbol font file is in Menu -> Preferences -> Drafting... -> Common -> Lettering -> Symbol -> Symbol Font File = NX Ansi Symbols. After changing the option, you may need to restart NX for it to take effect (if changing the customer defaults).


www.nxjournaling.com

RE: Drafting font issue

(OP)
Thanks Cowski that fixed it! It's been driving me crazy trying to figure out what was going on.

Windows 7
NX 10.0.3.5
