Center mark Angel Inherit from selected object or Line

Center mark Angel Inherit from selected object or Line

Center mark Angel Inherit from selected object or Line

(OP)
Hi all,

Subject says everything,
I want to create a center mark using angel from selected line or axis,
Please help me how....

UG NX 10.0

Guljar Ali Shaik
Designer

RE: Center mark Angel Inherit from selected object or Line

(OP)
...........................???

Guljar Ali Shaik
Designer

RE: Center mark Angel Inherit from selected object or Line

Angel? In NX?
Seriously, give us some images because you obviously used wrong term to explain what you need.

RE: Center mark Angel Inherit from selected object or Line

So is what you want, the center mark on a drawing will be rotated a specific angle ?

RE: Center mark Angel Inherit from selected object or Line

ANGLE! LOL... now I fell so stupid...
Is it excuse that English is not my native language?

In drafting go to expressions, make "angle" (or what ever name you want) expression, measure angle between vertical or horisontal and line you want to align center mart to.
In center mark menu expand settings, expand angle, uncheck "inherit angle from view" and type "angle" (or what ever name you used in expression) press enter. This will rotate center mark couner clocwise for measured angle.
If it is no aligned you measured angle clockwise, and just type 360-angle (or what ever name you used in expression) and it will be correct.

RE: Center mark Angel Inherit from selected object or Line

only go through the hassle of creating an expression, as mentioned above, if the angle is expected to change

RE: Center mark Angel Inherit from selected object or Line

Yes... Jerry is right, if angle will not change just measure it and put value in that field.

RE: Center mark Angel Inherit from selected object or Line

(OP)
Sorry Guys...
I'm Late to the party,

It was a typing mistake...."ANGLE"

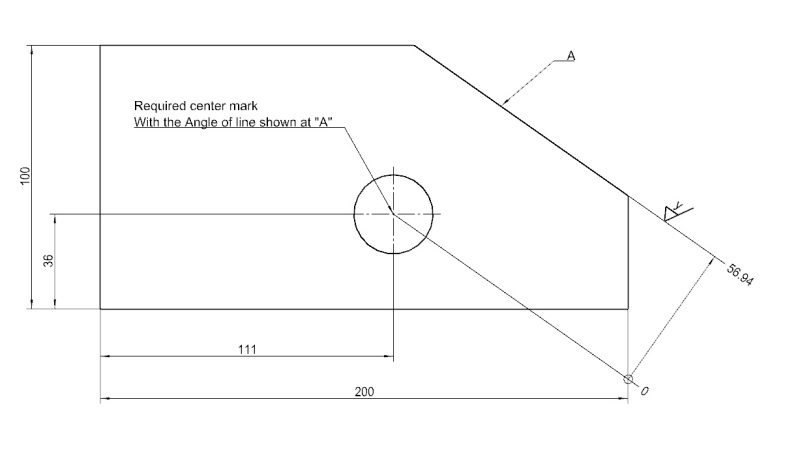

Please check..... below image.

Guljar Ali Shaik
Designer

Red Flag This Post

Please let us know here why this post is inappropriate. Reasons such as off-topic, duplicates, flames, illegal, vulgar, or students posting their homework.

Red Flag Submitted

Thank you for helping keep Eng-Tips Forums free from inappropriate posts.
The Eng-Tips staff will check this out and take appropriate action.
