In an assembly environment the parts behind mix up the section view.
In the figure below is it possible to have the section view for only the red rectangular window only?
(Green line: Section center line, Red Window where I want to restrict as section area)
How can I do that?
In the figure below is it possible to have the section view for only the red rectangular window only?
(Green line: Section center line, Red Window where I want to restrict as section area)
How can I do that?





RE: Section problem
duplicate the top view
in the 2d top view, create a breakout view showing only your red zone
then apply the breakout to your section
indocti discant et ament meminisse periti
RE: Section problem
Can you see the attachment and describe one by one from this new example?
RE: Section problem
please use this function to upload picture :

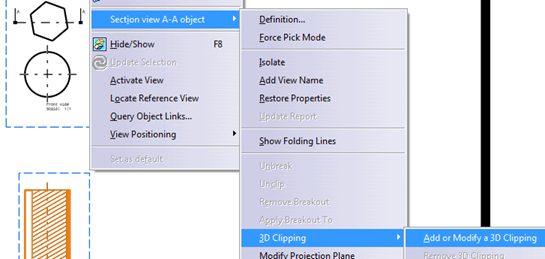

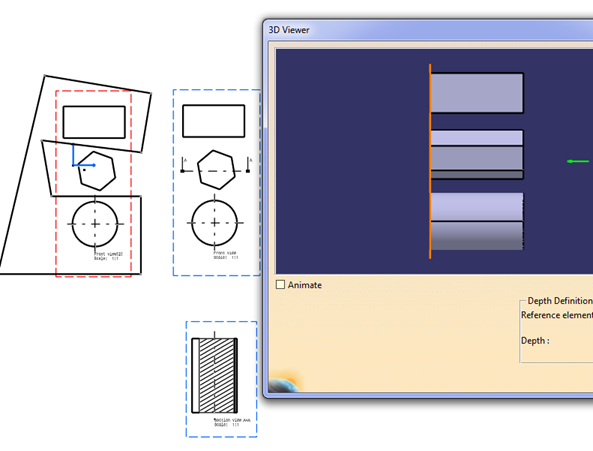

the other option is to use 3D clipping from the section... check RMB
indocti discant et ament meminisse periti
RE: Section problem
Try section cut.
