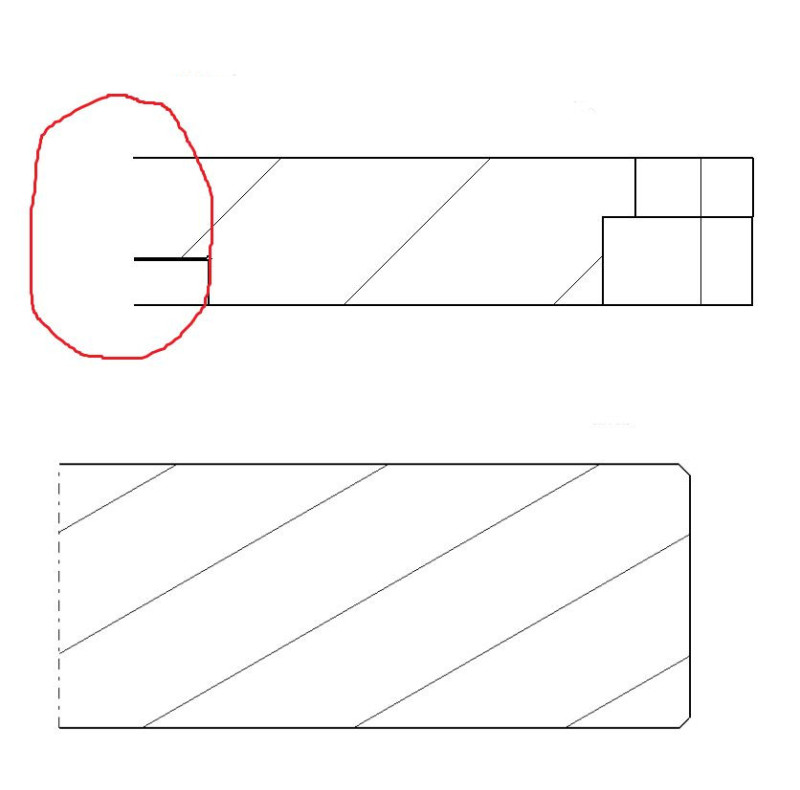

Hallo everyone, I have few questions about drafting in NX. For picture 1.
http://postimg.org/image/t1b9o70tb/
1. Is it possible to make two positions of the handle like in the picture?
2. Cross section B6?
3. Line J1?

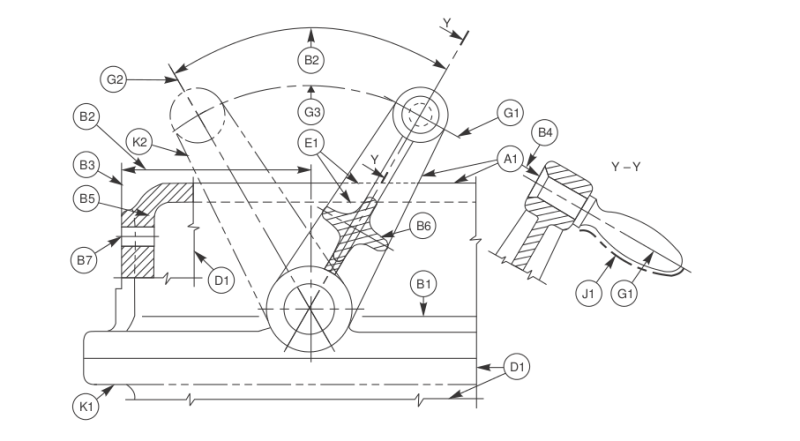

For picture 2.
Where are the settings for the intersection line like the one on the second section?
http://s12.postimg.org/jf0gp10vx/image.jpg
http://postimg.org/image/t1b9o70tb/
1. Is it possible to make two positions of the handle like in the picture?
2. Cross section B6?
3. Line J1?
For picture 2.
Where are the settings for the intersection line like the one on the second section?
http://s12.postimg.org/jf0gp10vx/image.jpg
