Good day everyone,
If there is any method to create a 45 degree Square to round sheet metal elbow and then obtain the flat pattern?
I can create the swept, but when I try to unbend it, it does not let me to do it, I think the problem is beacause the swept is just one body.
Thanks in advance!
P.P.
If there is any method to create a 45 degree Square to round sheet metal elbow and then obtain the flat pattern?
I can create the swept, but when I try to unbend it, it does not let me to do it, I think the problem is beacause the swept is just one body.
Thanks in advance!
P.P.

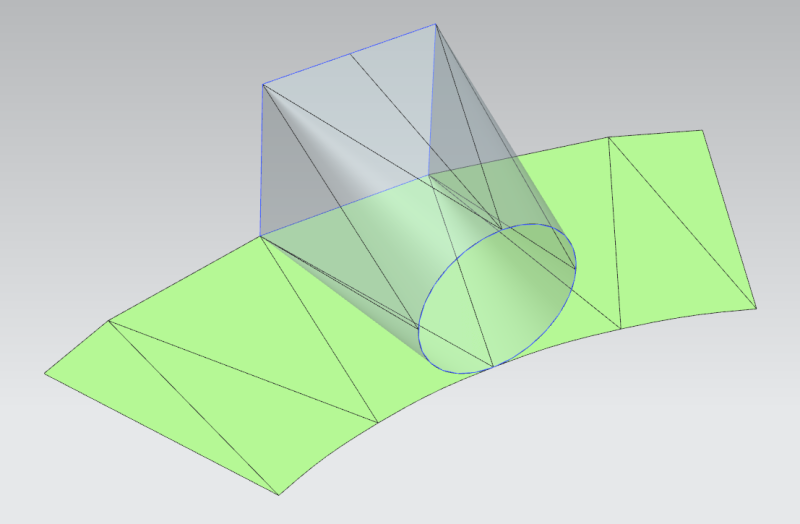

RE: Flat pattern of a square to round elbow
John R. Baker, P.E.
Product 'Evangelist'
Product Engineering Software
Siemens PLM Software Inc.
Digital Factory
Cypress, CA
Siemens PLM:
UG/NX Museum:
To an Engineer, the glass is twice as big as it needs to be.
RE: Flat pattern of a square to round elbow
John R. Baker, P.E.
Product 'Evangelist'
Product Engineering Software
Siemens PLM Software Inc.
Digital Factory
Cypress, CA
Siemens PLM:
UG/NX Museum:
To an Engineer, the glass is twice as big as it needs to be.
RE: Flat pattern of a square to round elbow
I am using NX8.5.
I remember that you helped me a few months ago on how to obtain the flat pattern on this NX version:
http://www.eng-tips.com/viewthread.cfm?qid=383157
But it was for a straight duct. Now I want to do the same but for an 45 degree elbow.
Thanks in advance!
P.P.
