Use selective instance in reuse pattern

Use selective instance in reuse pattern

Use selective instance in reuse pattern

(OP)
Hi,
I need to reuse the bolts in an assembly which has circular pattern. That pattern has 8 holes. But, I need 4 holes alternatively. Is it possible to use the reuse pattern for selective instance. Kindly give any idea. Time being, I constrained all bolts and nuts individually in 4 instances.
Suresh

RE: Use selective instance in reuse pattern

@suresh070379
There should be an orange dot that represents each instance when creating (or editing) the pattern. Click the orange dot to disable that instance.

Drew Mumaw
www.textsketcher.com
www.drewmumaw.com

RE: Use selective instance in reuse pattern

(OP)
Hi drew,
Thanks for the reply.
I unable to found out the orange dot in the reuse pattern edit dialogue box.
Kindly provide the screen shot and mark the orange dot.
Suresh.

RE: Use selective instance in reuse pattern

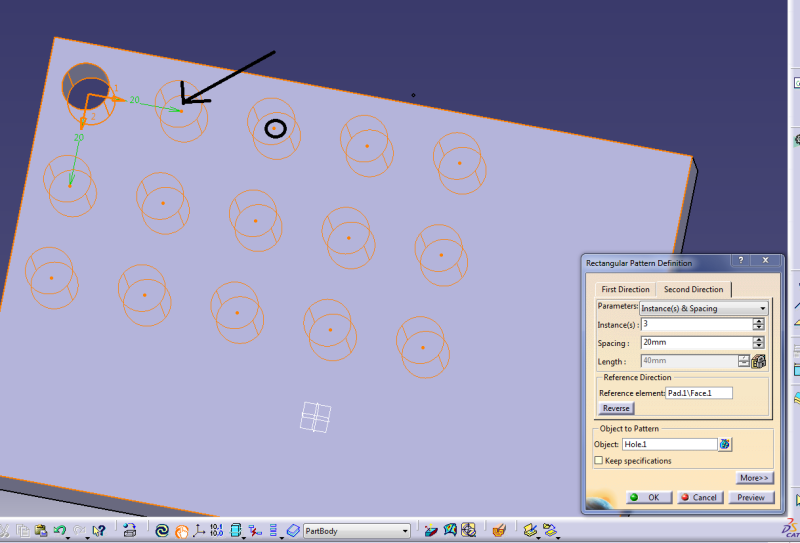

See Below image

RE: Use selective instance in reuse pattern

(OP)
Hi Sachin,
No image is available. I think you need to add as attachment.
kindly check and revert.
Suresh

RE: Use selective instance in reuse pattern

(OP)
Hi Sachin,
You have shown the dialogue box for pattern creation in part design work bench. My requirement is reusing the pattern already available in smart team ( i.e. read only) to replicate the parts in assembly work bench. My understanding is we cannot edit the pattern or on/off the orange dot in read only component. Or is it possible by make the product as flexible. Kindly revert if I am correct or any other way is available.
Suresh

RE: Use selective instance in reuse pattern

Quote (sureh070379)

My understanding is we cannot edit the pattern or on/off the orange dot in read only component.

do you work with a PLM system?

When working file base, CATIA allows you to modify file even if file is read only. You won't be able to overwrite original file.

Eric N.
indocti discant et ament meminisse periti
