SHOCK FORK design model
SHOCK FORK design model
(OP)
Hi,

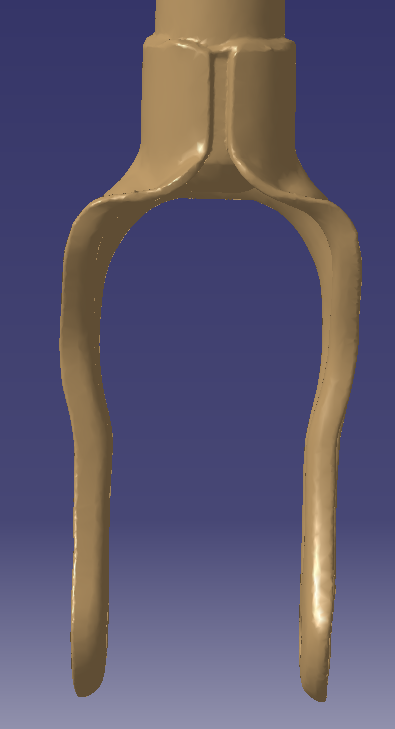

I need to design a Suspension Shock Fork (please, see the attached picture).
It doesn't seem to be a easy design, but I count on your advise.
Has somebody designed a similar part in the past?
How should I create this model?
Do you have a model by any chance?
Thanks
I need to design a Suspension Shock Fork (please, see the attached picture).
It doesn't seem to be a easy design, but I count on your advise.
Has somebody designed a similar part in the past?
How should I create this model?
Do you have a model by any chance?
Thanks
CAD 2015





RE: SHOCK FORK design model
CAD 2015
RE: SHOCK FORK design model
John R. Baker, P.E.
Product 'Evangelist'
Product Engineering Software
Siemens PLM Software Inc.
Digital Factory
Cypress, CA
Siemens PLM:
UG/NX Museum:
To an Engineer, the glass is twice as big as it needs to be.
RE: SHOCK FORK design model
Thanks for prompt reply.
CAD 2015
RE: SHOCK FORK design model
CAD 2015
RE: SHOCK FORK design model
To me it seems one would use freeform modelling combined with sheet metal.
I'll give it a try.
Older budweiser
NX8.5 & NX9.0 64bit, hp z820
RE: SHOCK FORK design model
Thanks for reply.
Yes, it is a scanned model.
I have no idea about conversion of scan data to a CAD model so far.........
CAD 2015
RE: SHOCK FORK design model
http://www.eng-tips.com/viewthread.cfm?qid=390135
RE: SHOCK FORK design model
Would the use of the Sheet Metal be possible in this case?
Thanks,
CAD 2015
RE: SHOCK FORK design model
John R. Baker, P.E.
Product 'Evangelist'
Product Engineering Software
Siemens PLM Software Inc.
Digital Factory
Cypress, CA
Siemens PLM:
UG/NX Museum:
To an Engineer, the glass is twice as big as it needs to be.
RE: SHOCK FORK design model
CAD 2015
RE: SHOCK FORK design model
Thanks again for taking the time to reply to my thread.
The area you started with wouldn't create any problem for designing.

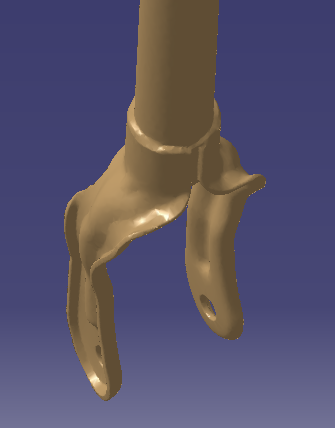

The real problem is the area below the welding zone (please see the attached picture).
How would you design this critical area? Can you start a model ( the dimension do not matter) similar to the pictures?
CAD 2015
RE: SHOCK FORK design model
CAD 2015
RE: SHOCK FORK design model
I have to learn how to create this part, I can't sleep until I'll got the lesson..................
CAD 2015
RE: SHOCK FORK design model
John R. Baker, P.E.
Product 'Evangelist'
Product Engineering Software
Siemens PLM Software Inc.
Digital Factory
Cypress, CA
Siemens PLM:
UG/NX Museum:
To an Engineer, the glass is twice as big as it needs to be.
RE: SHOCK FORK design model
The shape of the part is very challenging.
I have never designed something like that so far!
That's the object of my curiosity.
My current job assignments are totally different.
CAD 2015
RE: SHOCK FORK design model
John R. Baker, P.E.
Product 'Evangelist'
Product Engineering Software
Siemens PLM Software Inc.
Digital Factory
Cypress, CA
Siemens PLM:
UG/NX Museum:
To an Engineer, the glass is twice as big as it needs to be.
RE: SHOCK FORK design model
CAD 2015
RE: SHOCK FORK design model
Can you help me understand the swept feature? I'm looking at your example in 10.0.2.6. Swept(17) use the 2 sections and Bridge Curve(15) as the only guide, but Bridge Curve(14) has a direct influence on the shape of Swept(17). Can you explain what's going on or am I just missing something?
Thanks,
John
RE: SHOCK FORK design model
If you edit the swept and highlight "Section1", you will see that it is made of 6 curve objects; "Section2" is made of two curve objects.
RE: SHOCK FORK design model
Thanks,
John
