NX Drafting_Can not find Solution for Angular Dimension Alignment

NX Drafting_Can not find Solution for Angular Dimension Alignment

NX Drafting_Can not find Solution for Angular Dimension Alignment

(OP)
Hello
who can help me?

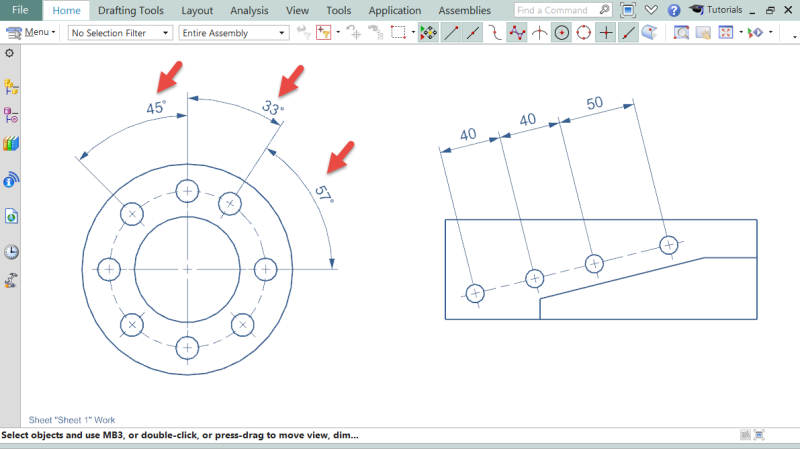

I can not find a method for create a permanent angular dimension alignment.
like that can be for linear dimensions. i used origin tool and it works one by one for dimensions and its not permanent and time consuming.

is a better and quicker way to do that?
i attached NX file

NX 10
Windows 7


RE: NX Drafting_Can not find Solution for Angular Dimension Alignment

What you've found with the Origin Tool is as good as it's going to get for now. I would suggest calling GTAC with all of these issues you're finding and logging Enhancement Requests. While it may not be Associative, you can at least align them with the Origin Tool for the time being.

Tim Flater
NX Designer
NX 9.0.3.4 Win7 Pro x64 SP1
Intel Xeon 2.53 GHz 6GB RAM
NVIDIA Quadro 4000 2GB
