Dummy solid model from external surface of large assembly- NX 8.5

Dummy solid model from external surface of large assembly- NX 8.5

Dummy solid model from external surface of large assembly- NX 8.5

(OP)
Is there any easy and fast way to create a Dummy solid model from a large assembly [800+ parts].We need only the external features.
Would like to remove all holes/threads/slots etc from this model.

This model is required to generate a STL file.

NX version - 8.5.3.3

RE: Dummy solid model from external surface of large assembly- NX 8.5

Yes, we have a function called 'Simplify Assembly' (use the Command Finder).

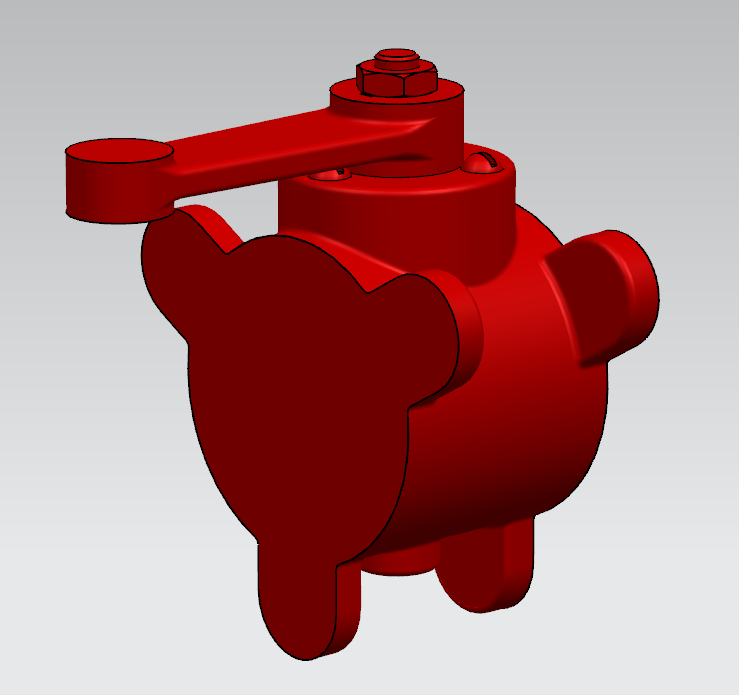

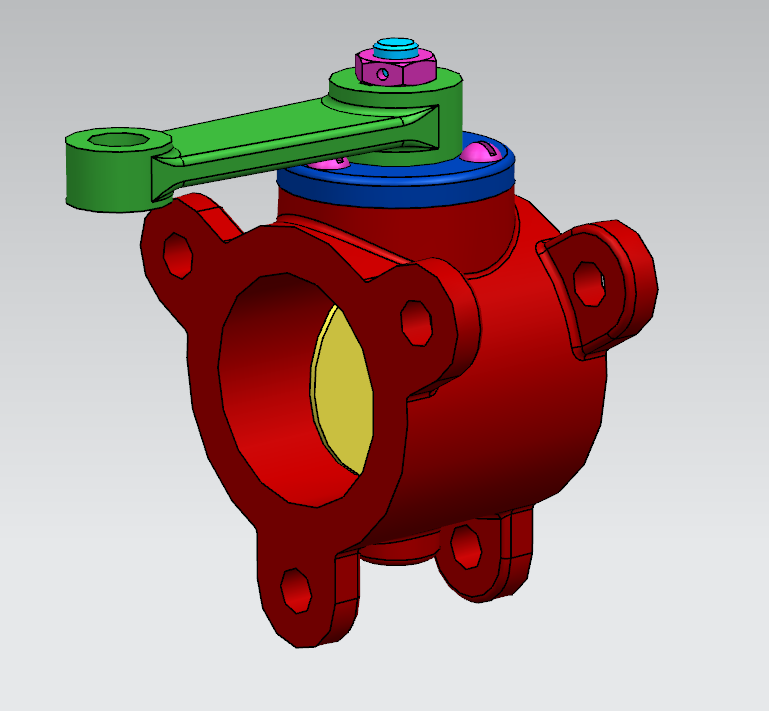

Here are before and after shots of a simple assembly that took only about a minute to process:



John R. Baker, P.E.
Product 'Evangelist'
Product Engineering Software
Siemens PLM Software Inc.
Digital Factory
Cypress, CA
Siemens PLM:
UG/NX Museum:

To an Engineer, the glass is twice as big as it needs to be.
