Sketch, dimension intersection

Sketch, dimension intersection

Sketch, dimension intersection

(OP)
Does anyone have any insight as to why you cannot dimension an intersection in sketching? (using NX9)

RE: Sketch, dimension intersection

Create a Sketch Point at the intersection of the two curves and then you can create constraint dimensions to the Point object.

John R. Baker, P.E.
Product 'Evangelist'
Product Engineering Software
Siemens PLM Software Inc.
Digital Factory
Cypress, CA
Siemens PLM:
UG/NX Museum:

To an Engineer, the glass is twice as big as it needs to be.

RE: Sketch, dimension intersection

(OP)
Thanks, John

RE: Sketch, dimension intersection

FWIW,

If you create the corner first & dimension it, then round it with a fillet/radius, the Sketecher will create the intersection/point for you.

Tim Flater
NX Designer
NX 9.0.3.4 Win7 Pro x64 SP1
Intel Xeon 2.53 GHz 6GB RAM
NVIDIA Quadro 4000 2GB

RE: Sketch, dimension intersection

(OP)
Xwheelguy,

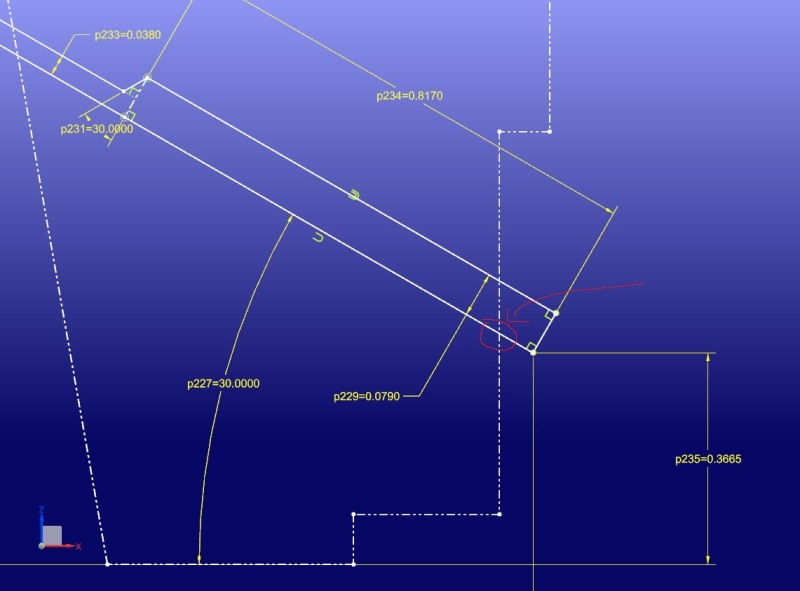

My situation was a little different than that. See attached image, the intersection circled in red is what I actually want to dimension to. If I didn't extend the profile beyond the part I would obviously be left with a little sliver that wouldn't get subtracted.
