Is there a way to 'organize' 3D measurements into Folders/Geometical Sets in CATIA?

Is there a way to 'organize' 3D measurements into Folders/Geometical Sets in CATIA?

Is there a way to 'organize' 3D measurements into Folders/Geometical Sets in CATIA?

(OP)
Hello Everyone

First of all - I apologize if this has already been posted. I did a quick search and couldnt find a similar question, so hopefully thats the case.

My question regards measuring features inside of a part or assembly 3D file. Is there a way to 'organize' those measurements into individual folders/geometrical sets, like you would do with any other feature/part? I measure hundreds of areas and it becomes very troublesome trying to 'sift' through the measurements..

(I am trying to get some screen shots up to help explain, but am having trouble...current attachment is an example of the types of measurements I take and how it can be difficult to 'Find' the correct one).


Thanks for any feedback/tips!

Ryan

RE: Is there a way to 'organize' 3D measurements into Folders/Geometical Sets in CATIA?

(OP)
Im trying to add a few pictures to my post, but I am having trouble doing so...

Anyways, the attachment in THIS post is how I typically organize my features/parts...I am wondering if there is a way to do something similar with measurements?

RE: Is there a way to 'organize' 3D measurements into Folders/Geometical Sets in CATIA?

in v5 you can use filters and layers... it should help.

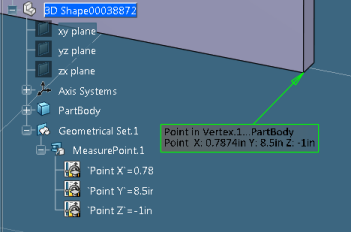

in 3DEXPERIENCE measures will be in GeomSet:

Eric N.
indocti discant et ament meminisse periti

RE: Is there a way to 'organize' 3D measurements into Folders/Geometical Sets in CATIA?

...or you can create parameters that measure item using formula. Then move parameters to GoeSet...

Eric N.
indocti discant et ament meminisse periti
