nx6 sketch mirror function

nx6 sketch mirror function

nx6 sketch mirror function

(OP)
Hi

Do the nx6 sketch mirror function is removed from nx8.5 ?
I want to sketch a half profile and mirror it

Thanks in advanced

RE: nx6 sketch mirror function

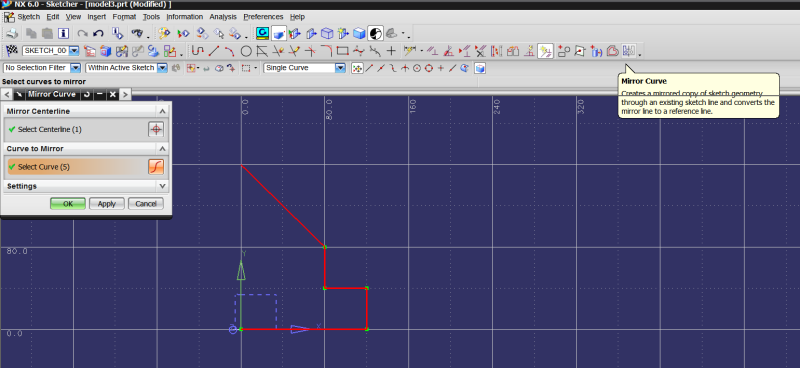

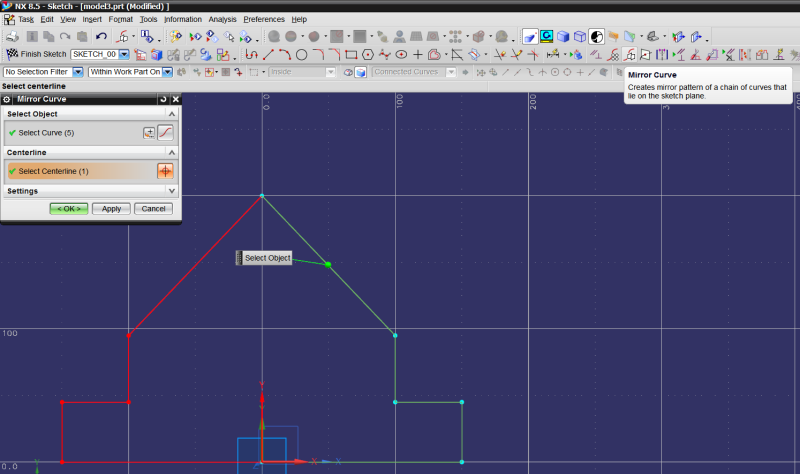

Yes, the Mirror Function is still there albeit under a new updated Icon, as shown below, first NX 6.0 and then NX 8.5:





Also note that the selection order in the dialog has been reversed and that you now can use selection intent, such as 'Connected Curves', 'Tangent Curves' or 'Curves in Group' as well as 'Single Curve', so that it's easier to select a profile with many curve elements. You now select the curves to me mirrored first and then the 'centerline' reference.

John R. Baker, P.E.
Product 'Evangelist'
Product Engineering Software
Siemens PLM Software Inc.
Digital Factory
Cypress, CA
Siemens PLM:
UG/NX Museum:

To an Engineer, the glass is twice as big as it needs to be.

RE: nx6 sketch mirror function

(OP)
Hi John

Thank you very match

May be I was hurried to ask

Red Flag This Post
