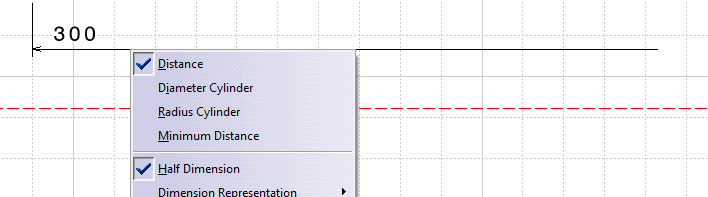

×
INTELLIGENT WORK FORUMS
FOR ENGINEERING PROFESSIONALS

Log In

Come Join Us!

Are you an
Engineering professional?
Join Eng-Tips Forums!
  • Talk With Other Members
  • Be Notified Of Responses
    To Your Posts
  • Keyword Search
  • One-Click Access To Your
    Favorite Forums
  • Automated Signatures
    On Your Posts
  • Best Of All, It's Free!
  • Students Click Here

*Eng-Tips's functionality depends on members receiving e-mail. By joining you are opting in to receive e-mail.

Posting Guidelines

Promoting, selling, recruiting, coursework and thesis posting is forbidden.

Students Click Here

Jobs

Catia v5 only one arrow when dimensioning

Catia v5 only one arrow when dimensioning

Catia v5 only one arrow when dimensioning

(OP)
Catia v5.
When I make a dimension using the length/distance dimension, angle dimension, or Dimension command only one arrow appears and the Dimension is double what it should be.

How do I fix this?

RE: Catia v5 only one arrow when dimensioning

after the 2d selection and before you click at third time to drop the dimension in place, use RMB and uncheck Half Dimemsion:

Eric N.
indocti discant et ament meminisse periti

RE: Catia v5 only one arrow when dimensioning

Hey ACarrier,

Is this happening with every dimension you create? Or just sometimes? Sometimes when creating a dimension in Catia it will automatically do what they call a "Half Dimension" for whatever reason. You can get around it by:

After clicking what you want to dimension, right click BEFORE you click the location of the dimension. In the drop down menu you'll see "Half Dimension". Click that and it should return to normal.

If it happens all the time, then you must have a setting or something changed somewhere. Hope that helps!

Ben

RE: Catia v5 only one arrow when dimensioning

(OP)
itsmyjob,

That is the solution. Thank you.

Red Flag This Post

Please let us know here why this post is inappropriate. Reasons such as off-topic, duplicates, flames, illegal, vulgar, or students posting their homework.

Red Flag Submitted

Thank you for helping keep Eng-Tips Forums free from inappropriate posts.
The Eng-Tips staff will check this out and take appropriate action.

Reply To This Thread

Posting in the Eng-Tips forums is a member-only feature.

Click Here to join Eng-Tips and talk with other members!


Resources
