Pls help ID this part
4

Pls help ID this part

Pls help ID this part

(OP)
Hi all,
Was hoping you could help ID a part, or guess it's design intent to help me choose the right sort of category to search at least.

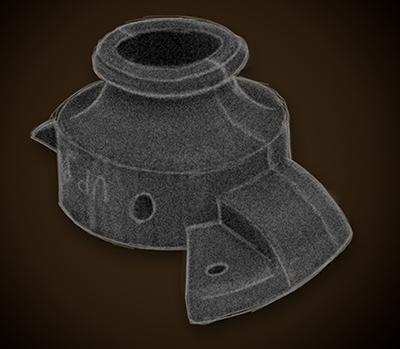

Please ignore the spring and possibly the bolts - but seeing it as a 2 hole mount, cast iron piece with the word "up" on the side, what would you guess its purpose is? Here is a sketch of what it most likely is without any add-ons:




I might guess it has a dedicated mounting direction due to the 'up' and meant to resist primarily lateral forces. Couldn't think of a lot of applications for that though, and the purpose of the reinforced ring around the top threw me as well.

Thanks for any and all help.

RE: Pls help ID this part

What is the equipment it is on? A picture of the entire device would be helpful.

RE: Pls help ID this part

Looks like it is installed upside-down, whatever it is.

RE: Pls help ID this part

(OP)

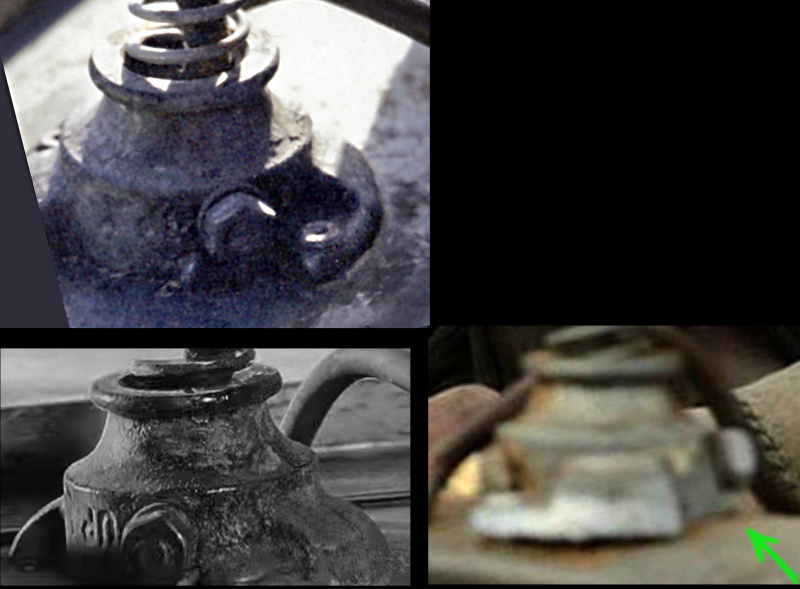

I'm afraid it's been repurposed in these images, we can't use the part's surroundings to help ID it. I'm assuming the flange coming off the support tabs would have had a mounting hole in the first place, unless somehow this keyed and twisted into another part.

RE: Pls help ID this part

Maybe the "UP" is not an orientation mark, but a manufacturers' mark, you know, "Unidentifiable Products" or something.

Regards,

Mike

RE: Pls help ID this part

I'd guess it's part of an old gas street light.
