Strand7 Reaction Forces

Strand7 Reaction Forces

Strand7 Reaction Forces

(OP)
Hi All,

I very well may be missing something, but I cannot find out how to show nodal reactions in Strand7? I've tried the following routes:

1. Opening the results viewer and selecting the "node tab" - the only tab at the bottom of the window is for "displacement". I don't see "reaction" anywhere.
2. Element results window - again no option for reaction anywhere! Only options are "displacement" "stress" "force" and "moment"
3. Using the peek option - alas, under nodes there is nowhere that shows reactions, the only peeking i'm able to do is to obtain displacements and rotations.
4. Graphing tool - also not working, the only option to graph under nodes are displacements.


Am I missing something? Attached is screen grab of some of the options above showing "reactions" missing.

Plate element stresses and forces are showing perfectly.

Please help! Using strand7 V2.3.8.

Thanks,

_________________
Jones & Wagener
www.jaws.co.za

RE: Strand7 Reaction Forces

When you run the solver, click on the Results tab, and make sure that Node reactions are selected.

Doug Jenkins
Interactive Design Services
http://newtonexcelbach.wordpress.com/

RE: Strand7 Reaction Forces

(OP)
Great! Thank you very much Doug.

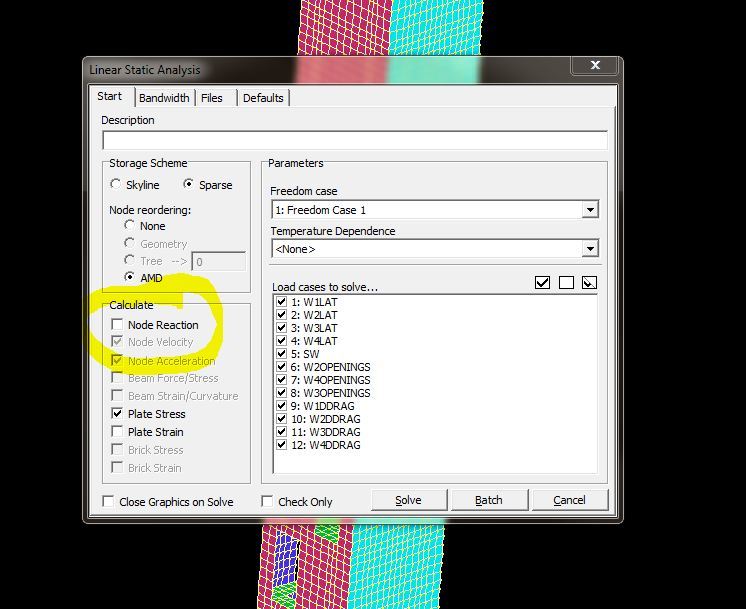

For reference if others stumble on this simple problem, tick box location is here:

_________________
Jones & Wagener
www.jaws.co.za

RE: Strand7 Reaction Forces

Looks like you are using an earlier version there.

In the latest version the "calculate" options are on a separate Results tab, in the solver dialog box.

Doug Jenkins
Interactive Design Services
http://newtonexcelbach.wordpress.com/
