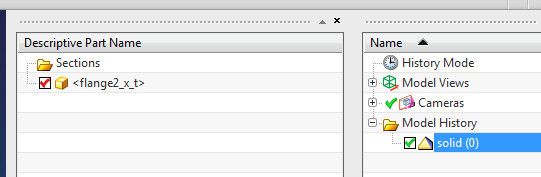

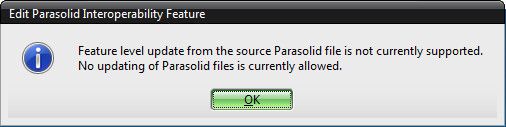

×
INTELLIGENT WORK FORUMS
FOR ENGINEERING PROFESSIONALS

Log In

Come Join Us!

Are you an
Engineering professional?
Join Eng-Tips Forums!
  • Talk With Other Members
  • Be Notified Of Responses
    To Your Posts
  • Keyword Search
  • One-Click Access To Your
    Favorite Forums
  • Automated Signatures
    On Your Posts
  • Best Of All, It's Free!
  • Students Click Here

*Eng-Tips's functionality depends on members receiving e-mail. By joining you are opting in to receive e-mail.

Posting Guidelines

Promoting, selling, recruiting, coursework and thesis posting is forbidden.

Students Click Here

Jobs

Parasolid export

Parasolid export

Parasolid export

(OP)
Hey guys..

Short question about exporting and importing of parasolids.

When I export a Parasolid from NX8.5.3., after that I import it again in NX (same version) I get the below result in part navigator.


Now when I double click (edit) the feature I get below message.


Which implies that somehow there is feature information to be retrieved and capable of editing...how can I accomplish this?

Ronald van den Broek
Application Specialist
Winterthur Gas & Diesel Ltd
NX8.5.3 / TC9.1.2
HPZ420 Intel(R) Xeon(R) CPU E5-1620 0 @ 3.60GHz, 32 Gb Win7 64B
Nvidea Quadro4000 2048MB DDR5
HP EliteBook 8570W Intel(R) Core(TM) I7-3740QM CPU @ 2.70GHz, 16Gb Win7 64B

RE: Parasolid export

Your pictures are blocked for me, could you add the text of the messages or attach the pics using the engineering.com link (below the submit post box)?

www.nxjournaling.com

RE: Parasolid export

(OP)
Error message is as follows.

Quote (NX 8.5.3)

Feature level update from the source Parasolid file is not currently supported. No updating of Parasolid files is currently allowed

Ronald van den Broek
Application Specialist
Winterthur Gas & Diesel Ltd
NX8.5.3 / TC9.1.2
HPZ420 Intel(R) Xeon(R) CPU E5-1620 0 @ 3.60GHz, 32 Gb Win7 64B
Nvidea Quadro4000 2048MB DDR5
HP EliteBook 8570W Intel(R) Core(TM) I7-3740QM CPU @ 2.70GHz, 16Gb Win7 64B

RE: Parasolid export

Despite what the 'Information' message might imply, there is NO feature data nor any parent/child relationships which the user can edit or for that matter that NX is even maintaining. Perhaps we should come-up with a better wording so as to be more clear as to exactly what is or is not happening here. But the bottom line is that you're not doing anything wrong, there's no setting that you missed or anything else, it's just a poorly worded message.

John R. Baker, P.E.
Product 'Evangelist'
Product Engineering Software
Siemens PLM Software Inc.
Digital Factory
Cypress, CA
Siemens PLM:
UG/NX Museum:

To an Engineer, the glass is twice as big as it needs to be.

RE: Parasolid export

What the message is saying (I suppose) is that the body is a "Parasolid File Import" feature. In other words, you have a body whose parent is the Parasolid file. I think NX lets you import point files in roughly the same way, and this gives you a "feature" that you *can* edit -- you can replace the point file by a new/different one. The error message is saying that Parasolid import does not yet have this editing capability. It's not talking about a feature tree inside the Parasolid file -- there ain't no such thang; Parasolid knows (almost) nothing about parent-child relationships.

RE: Parasolid export

Please, that is NOT an 'error' message! It'a an 'Informational' message, hence the BIG letter ' (i) '. If it were an 'error' it would have a BIG ' (X) '.

And please do NOT read too much into the wording of the message as I've already stated that it's poorly worded and does mean what you might think it does.

John R. Baker, P.E.
Product 'Evangelist'
Product Engineering Software
Siemens PLM Software Inc.
Digital Factory
Cypress, CA
Siemens PLM:
UG/NX Museum:

To an Engineer, the glass is twice as big as it needs to be.

RE: Parasolid export

(OP)
Hi John..Thanks a lot for the clarification....

The problem is actually that we are moving to NX9 pretty soon from now. However some of our Licensees are staying on NX8.5 (or switching from 7.5 to 8.5) and we need to come up with a solid way (pun intended) to exchange our NX9 data with their earlier versions..

So probably Step would be our best bet, just need to come up with a solution for the drawings...

Ronald van den Broek
Application Specialist
Winterthur Gas & Diesel Ltd
NX8.5.3 / TC9.1.2
HPZ420 Intel(R) Xeon(R) CPU E5-1620 0 @ 3.60GHz, 32 Gb Win7 64B
Nvidea Quadro4000 2048MB DDR5
HP EliteBook 8570W Intel(R) Core(TM) I7-3740QM CPU @ 2.70GHz, 16Gb Win7 64B

RE: Parasolid export

No, there is NOTHING wrong with using Parasolid to exchange model data between newer versions of NX and older versions. In fact, it's the preferred method for doing this if the only need is to move the topological solid or sheet bodies. All I'm saying is that there is NO 'Error' in what you're doing but rather you're simply being told, via an 'Informational' message, that there is not the possibility to edit the Parasolid body as if it were a normal NX feature. In fact, you can avoid ever getting these messages altogether if you had copied your Parasolid bodies into an existing, but empty, NX part file using the...

File -> Import -> Parasolid...

...workflow rather then opening the Parasolid files directly using File -> Open...

Granted, we support both approaches, but in your case, perhaps the way I've proposed above would serve you better in the long run. And before you ask, nothing has changed in NX 9.0 or NX 10.0 with respect to these two alternative methods for moving Parsolid data from newer versions of NX to an older version.

John R. Baker, P.E.
Product 'Evangelist'
Product Engineering Software
Siemens PLM Software Inc.
Digital Factory
Cypress, CA
Siemens PLM:
UG/NX Museum:

To an Engineer, the glass is twice as big as it needs to be.

RE: Parasolid export

If you would run NX and Solid Edge "in Pair", then the double click will have the option to update to a later version of the body, with kept downstream associativity.
Say that you design your parts in SE and use NX for Simulation, CAM etc, then you can "replace" the SE body and keep the work done in NX.

( Browse the Solid edge threads for a sample model to test...smile


Regards,
Tomas

Red Flag This Post

Please let us know here why this post is inappropriate. Reasons such as off-topic, duplicates, flames, illegal, vulgar, or students posting their homework.

Red Flag Submitted

Thank you for helping keep Eng-Tips Forums free from inappropriate posts.
The Eng-Tips staff will check this out and take appropriate action.

Reply To This Thread

Posting in the Eng-Tips forums is a member-only feature.

Click Here to join Eng-Tips and talk with other members!


Resources
