I'm looking for a way to enable fringing display in NX9. Could anyone suggest a way to do this?
INTELLIGENT WORK FORUMS
FOR ENGINEERING PROFESSIONALS Come Join Us!Are you an
Engineering professional? Join Eng-Tips Forums!
*Eng-Tips's functionality depends on members receiving e-mail. By joining you are opting in to receive e-mail. Posting GuidelinesJobs |
Enable fringing display in NX?
|
RE: Enable fringing display in NX?
John R. Baker, P.E.
Product 'Evangelist'
Product Engineering Software
Siemens PLM Software Inc.
Digital Factory
Cypress, CA
Siemens PLM:
UG/NX Museum:
To an Engineer, the glass is twice as big as it needs to be.
RE: Enable fringing display in NX?

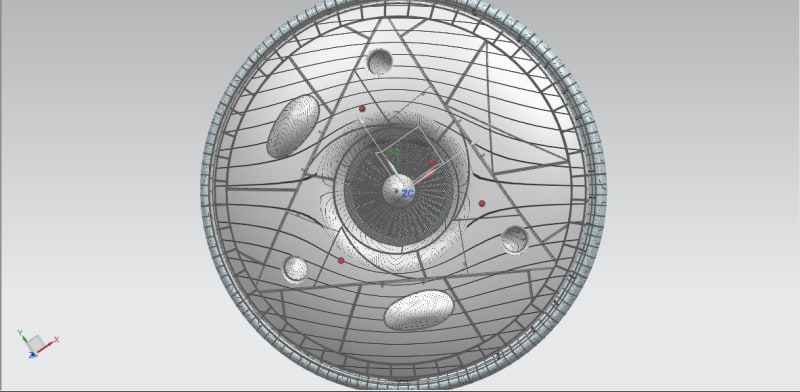

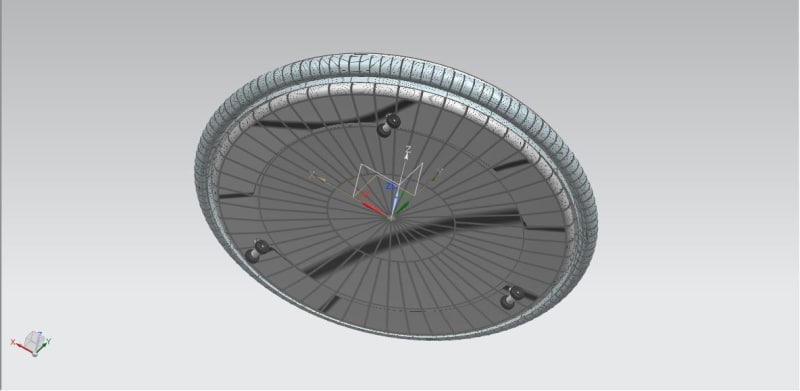

It projects some lines onto the model.
RE: Enable fringing display in NX?
Analysis -> Shape -> Reflections...
...and selecting the faces of the model that you wish to see the Reflection lines displayed on. Note there are several display options and the real value of this mode is to rotate the model around to see how smooth the Reflection lines look or how they transition from one face to another which shows the type of seam, whether it's sharp, tangent or curvature continuous. This tool is generally used to check the quality of the faces of a model and how light will reflect off the final part particularly if it's something that will plated and/or polished to mirror finish.
