NX 9.0 problem of viewing edges

NX 9.0 problem of viewing edges

NX 9.0 problem of viewing edges

(OP)
Hello everyone,
i have a problem with my nx 9.
With nx 8.5 i didn't have this problem.

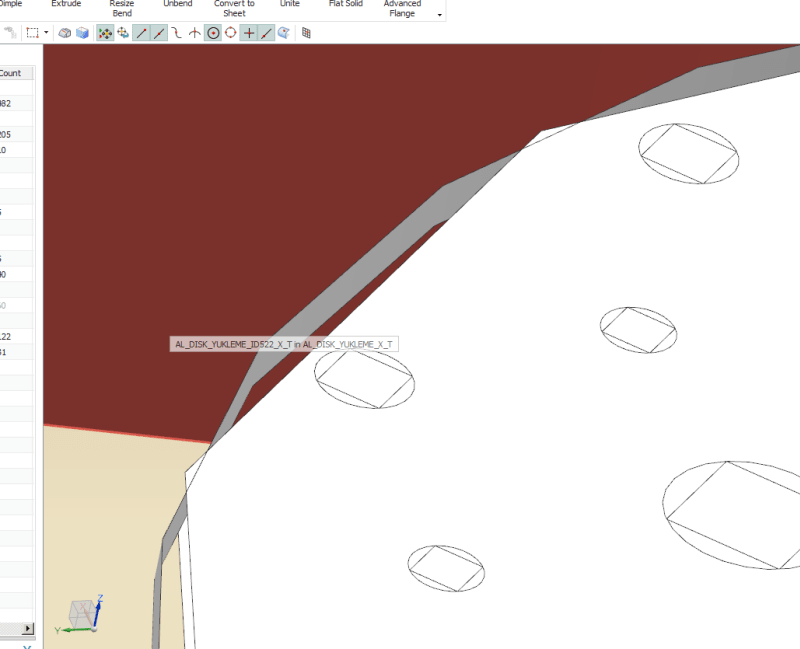

On my working part, All holes, fillet edges looks like that.
On my notebook it's same.
I've quadro FX4800 , quadro k5000m.
How can i solve my problem?

RE: NX 9.0 problem of viewing edges

Have you open the assembly in lightwegt mode ?
If yes, it's normal, but with some setting you can view better using a new setting added in NX9.

Thank you...

Using NX 8 and PDM RuleDesigner

RE: NX 9.0 problem of viewing edges

(OP)
Nope, i never use lightweight assmbly mode.

RE: NX 9.0 problem of viewing edges

Take a look at Fundamentals - Display facet enhancements in the What's New Guide.
There are some new preferances for how the facets are displayed, based on the view or the part.

Thank you...

Using NX 8 and PDM RuleDesigner

RE: NX 9.0 problem of viewing edges

Quote (Kaan01)


...i never use lightweight assmbly mode.

Why not?

John R. Baker, P.E.
Product 'Evangelist'
Product Engineering Software
Siemens PLM Software Inc.
Industry Sector
Cypress, CA
Siemens PLM:
UG/NX Museum:

To an Engineer, the glass is twice as big as it needs to be.

RE: NX 9.0 problem of viewing edges

(OP)
I suppress the sub-assamblies that i rarely use.
I didn't have performance problems yet. If i have problems on performance in future, i may use.

RE: NX 9.0 problem of viewing edges

(OP)
i still couldn't solve my problem.
There are hundreds of settings about "facet".
If i try all of them it'll take hours.
Am i only the one who has this problem?

RE: NX 9.0 problem of viewing edges

If you have access to Siemens GTAC via a webkey account, there is a document that explains what you want.

Search for "Improving Edge Display Quality In The Graphics Display".

Anthony Galante
Senior Support Engineer

NX5.0.6, NX6.0.5, NX7.5.5, NX8.0.0 -> NX8.0.3
NX8.5.0 -> NX8.5.3, NX9.0.0 -> NX9.0.1

RE: NX 9.0 problem of viewing edges

(OP)
i solved my problem with this way.
Thank you for help.

RE: NX 9.0 problem of viewing edges

so you changed the resolution ?

RE: NX 9.0 problem of viewing edges

(OP)
yes...

Red Flag This Post
