Wrench wrom wheel

Wrench wrom wheel

Wrench wrom wheel

(OP)
Hallo

I've some problem by making a wrom wheel for a wrench.
I'm not sure of how I'm going to do it. Can somebody tell me which funktions I'm going to use.

The information:

Angel: 10 degrees
Pitch: 4 mm
Major diameter: 10 mm
Minor diameter: 14 mm

Thanks,

Best regreads

IDSanne

RE: Wrench wrom wheel

I would suggest Helix then Swept

Khimani Mohiki
Design Engineer - Aston Martin
NX8.5

RE: Wrench wrom wheel

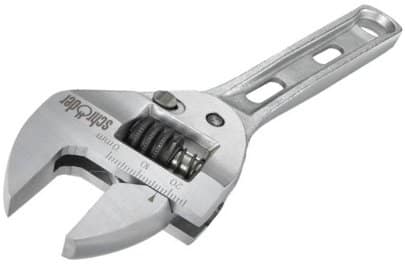

Illustration ?

RE: Wrench wrom wheel

Toost, I guess
