Differences in PDF-generation from NX6 to NX8

Differences in PDF-generation from NX6 to NX8

Differences in PDF-generation from NX6 to NX8

(OP)
Hello all

I'm looking for someone to help me with an annoying problem I'm having with shaded views in exported PDFs of drawings.
We upgraded to NX8 this spring but there have been a few issues. One of them is this:
There is tremendous aliasing/jaggies going on in the shaded views of drawing-PDF's now
example:

NX6-generated PDF:

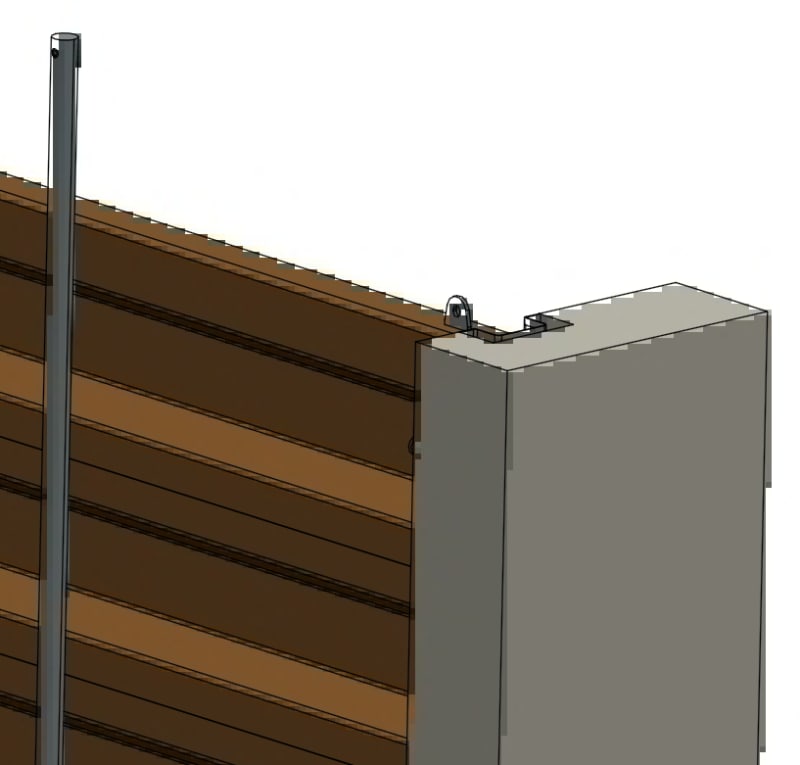

NX8-generated PDF:


Both examples are A1-drawings zoomed to 400% in Adobe Acrobat Pro.

This effect looks even worse in detail-views with shading as the circular view boundary wreaks havoc on the inside edges thumbsdown

Anyone know any workarounds?

Best regards
Daniel

I am Norwegian.
I design mechanicals for hydroelectric powerplants.
I use NX 8.0.3.4
----------------------------
