Mesh collectors

Mesh collectors

Mesh collectors

(OP)
Hi

Does anyone know of the trick to get my mesh collectors from CAE/modelling transferred to Results processing (Fringe plots)?

Any input will be appreciated. Thank you.

RE: Mesh collectors

Hello!,
What I do usually is to NAME the mesh collectors using a meaning name, this is critical, do not let the default names created by NX AdvSim. Later during postprocessing you will see your names under POSTVIEW, easy!!



Best regards,
Blas.

~~~~~~~~~~~~~~~~~~~~~~
Blas Molero Hidalgo
Ingeniero Industrial
Director

IBERISA
48011 BILBAO (SPAIN)
WEB: http://www.iberisa.com
Blog de FEMAP & NX Nastran: http://iberisa.wordpress.com/

RE: Mesh collectors

(OP)
Thank you for your feedback, Blas. I also thought your description would work, but I get a lot of mesh names (The same mesh names as given in modelling) and not mesh collectors.

I have 2D elements and doing Laminate composite analysis. Will that make a difference?

Rgds Bernt

RE: Mesh collectors

Hello!,
You need to créate MESH COLLECTORS in the FEM environment: be methodical, do not include avery 2-D surface Meshed in a new collector each time, create MESH COLLECTORS based in material, element thickness, etc.. and collect all mesh there (use drag & drop if you like) and use a proper name, this will be the name that you will see in the POSTVIEW under 2-D Elements

Best regards,
Blas.

~~~~~~~~~~~~~~~~~~~~~~
Blas Molero Hidalgo
Ingeniero Industrial
Director

IBERISA
48011 BILBAO (SPAIN)
WEB: http://www.iberisa.com
Blog de FEMAP & NX Nastran: http://iberisa.wordpress.com/

RE: Mesh collectors

Hi Blas Molero!
It seems that default post view settings will show Meshes listed under categories(1D, 2D etc.). Do you know where i can find the preference so it will show Mesh Collectors instead. Just naming the mesh collectors does not help. It still shows my Meshes not Collectors.
I see that you have defined ESCALON. Is that the name of the collector or the mesh beneath the collector?

Regards
Liridon

RE: Mesh collectors

Dear Liridon,

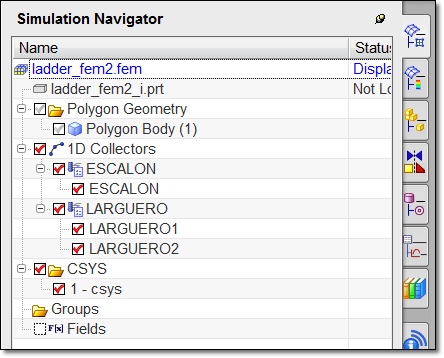

Here you are the plot of Simulation Navigator in the FEM environment, where both mesh collector and mesh items were renamed. The last one are the names that you will see under POSTVIEW, allowing you to select or deselect elements from the postprocessor. NX AdvSim use to generate one mesh item for every meshing action. If you select for meshing five surfaces at the same time, then only one meshing item will appear under the Mesh collector. If you mesh one-by-one, then five items will be.
