Hinge Mate problem

Hinge Mate problem

Hinge Mate problem

(OP)
Hello everyone.

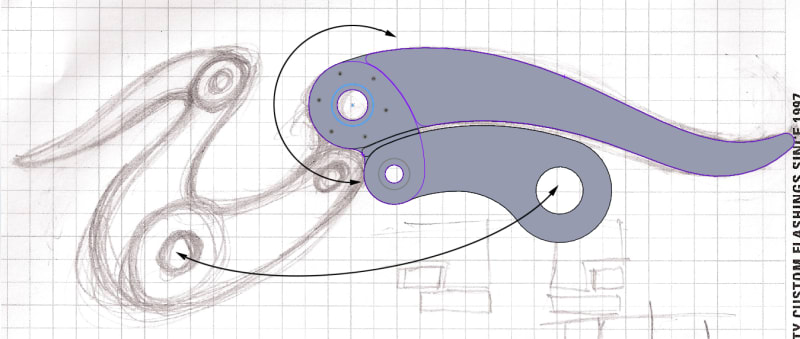

I have a model with very curved profile shapes (in Y axis (plan view)) I have a series of half lap style hinges that won't allow an angle limit. Is it my curvy shapes? I have no flat surfaces(faces) to use as angle selections.

I've created 2 of the five parts needed but I'm having a hard time with the next parts as i need rotational limits within Solidworks to create the appropriate clearances at each end of the part's swing.

Any ideas how to correct the problem? Maybe a work around?

Thanks
Gerald



RE: Hinge Mate problem

Create a reference plane in each part along the axis of rotation. Use those to set your angle limits.

RE: Hinge Mate problem

(OP)
I tried that but the planes don't show in the assembly. I must have something set wrong if I should be able to use reference planes..

RE: Hinge Mate problem

You can expand the parts in the tree to select the planes directly or adjust your visibility settings so that you can select them for mating.

RE: Hinge Mate problem

Check your View menu and make sure Planes is turned on.
