Created Tapered Threaded Holes/External Threads

Created Tapered Threaded Holes/External Threads

Created Tapered Threaded Holes/External Threads

(OP)
Is there any way to physically make a taper when creating a threaded hole? We currently use a UDF that creates a taper that we can then use a fit constraint on for threaded parts, but we would like to be able to do this with the threaded hole feature. If this is not possible, how is everyone else constraining to threaded holes?

Thanks for the help!

RE: Created Tapered Threaded Holes/External Threads

(OP)
Forgot to mention, we are using NX 8.0.3.4

RE: Created Tapered Threaded Holes/External Threads

Why are you so set on using the 'Fit' constraint? At least in my opinion, creating non-standard geometry for the soul sake of making it easier to constrain something in an Assembly is very shortsighted. I think it's better to model what it is that you want to manufacture and then apply the appropriate constraints normally used when mating something to a hole.

John R. Baker, P.E.
Product 'Evangelist'
Product Engineering Software
Siemens PLM Software Inc.
Industry Sector
Cypress, CA
Siemens PLM:
UG/NX Museum:

To an Engineer, the glass is twice as big as it needs to be.

RE: Created Tapered Threaded Holes/External Threads

(OP)

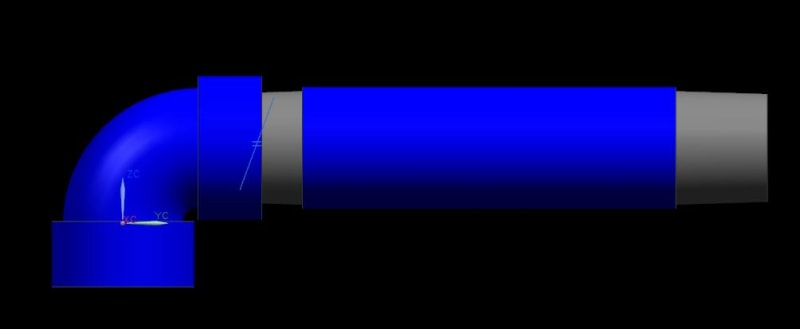

I should have explained a little better. We use the taper for constraining on NPT threads ONLY. Since NPT threads are tapered, this actually gives us a good representation of what is actually being manufactured. The original intent of my question was to determine if the threads or threaded hole feature in NX can create a simplified tapered geometry for NPT threads (I have only managed to show it on a drawing), or if a UDF is the best way to go. It would be nice to use the automatic hole call out and thread representation on drawings that the threaded hole feature offers though. Also, I'm not set on the fit constraint and would be happy to hear about different ways of constraining NPT threads using the threaded hole feature if anyone knows of any. I've attached some pictures of what we currently do with UDF's:





RE: Created Tapered Threaded Holes/External Threads

OK, that makes more sense. The NPT thread features are just symbolic and only provides a 'tapered' representation for detailed Drafting views. If you wish to have actual tapered male and female fittings you'll need to model them manually as there is no built-in function for that. If this is going to be something that you will be needing to do on a regular basis than perhaps either the use of a UDF (User Defined Feature) or something more automated using NX Open might be worth your time looking into.

John R. Baker, P.E.
Product 'Evangelist'
Product Engineering Software
Siemens PLM Software Inc.
Industry Sector
Cypress, CA
Siemens PLM:
UG/NX Museum:

To an Engineer, the glass is twice as big as it needs to be.

Red Flag This Post

Please let us know here why this post is inappropriate. Reasons such as off-topic, duplicates, flames, illegal, vulgar, or students posting their homework.

Red Flag Submitted

Thank you for helping keep Eng-Tips Forums free from inappropriate posts.
The Eng-Tips staff will check this out and take appropriate action.

Reply To This Thread

Posting in the Eng-Tips forums is a member-only feature.

Click Here to join Eng-Tips and talk with other members!
