Error during close surface

Error during close surface

Error during close surface

(OP)
hello ,

I am getting non manifold error during close surface when i try to convert a complex surface to solid. Please help me on this. How to resolve the errors and warnings during close surface command ?Thanks in Advance.



Regards,
Sudhakar.N

RE: Error during close surface

Hello Sudhakar,

Most likely you have a surface that does not completely enclose a volume or it is not limited by a planer curve (like the lateral of a cylinder without planar disks).

I would recommend using the Boundary feature from the Generative Shape Design workbench to highlight open patches in your surface that need to be closed.

Hope this helps,
Best of luck!

CATIA V5R19 – user & trainer
ANSYS – beginner

RE: Error during close surface

(OP)
Hi Tibix,

Thank you so much for your reply. Will try it and get back to you..

RE: Error during close surface

(OP)
And so how do i use this boundary to rectify it ?

RE: Error during close surface

I would use the Boundary feature ( ) to find open spaces in the surface; after you find the problematic area the solution depends on what kind of surface are working with, how complex it is, and so on...

You can read more about Boundary feature here.

CATIA V5R19 – user & trainer
ANSYS – beginner

RE: Error during close surface

(OP)
Thanks for your reply. So do you mean that the surface has to form one single loop while we extract the boundary out of it. Suppose i have an oil pan or a cylinder block then how do i do it ? Thanks in Advance.

RE: Error during close surface

If you are trying to close a surface, there should be no boundry (unless it is 1 single planar boundry), catia cannot close an open volume.

RE: Error during close surface

Quote:

Suppose i have an oil pan or a cylinder block then how do i do it ? Thanks in Advance.

-Split primitive solid (e.g. block, etc) created in Part Design with Yours surface
-Thick surface
-Sewing surface

Of course You can close Your surface manually, if there is only single boundary, especially if it is 2-D curve, You can extract boundary, create FILL and then Join Surface+Fill

Post screenshot for more accurate tips :)

LukaszSz. Poland, Warsaw University of Technology, Faculty of Power and Aeronautical Engineering : MEchanical Engineering. BsC - 2013

RE: Error during close surface

jopal has explained it very well.

Quote:

If you are trying to close a surface, there should be no boundry (unless it is 1 single planar boundry), catia cannot close an open volume.

In your case sudhakar12345, there are two possibilities (which prevent a clean Close Surface):

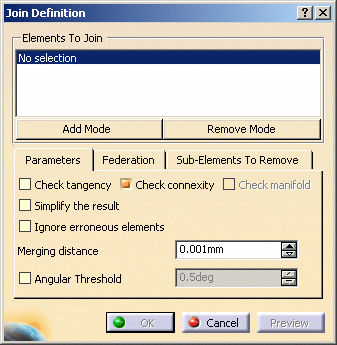

  • Some surfaces are not close enough to be able to close a singular volume by CATIA and in that case use the Join feature with Distance Propagation (right click in the window of the Join and click Distance Propagation) after selecting a face. In this case set a tolerance (Merging distance) big enough to be able to close the surface. More about this feature can be found here.


  • The other possibility is that you have bifurcating surfaces (like the letter Y) which will not permit closing...
A simple cylinder can be closed by the Close Surface because it can be closed by simple and planar surfaces automatically. CATIA can manage this...

Best of luck!

CATIA V5R19 – user & trainer
ANSYS – beginner

RE: Error during close surface

(OP)
Thank you Tibix & Japal.Will try and get back to you.

RE: Error during close surface

(OP)
Please find the error i am getting in the snap shots attached when i try to join the surface with distance propogation.

ERROR : Some non manifold configurations are detected.they are not managed by join operator.Modify input bodies to suppress these non manifold configurations.

RE: Error during close surface

Have You tried create boundary? (for better visibility change it;s graphical properties and hide surface)

LukaszSz. Poland, Warsaw University of Technology, Faculty of Power and Aeronautical Engineering : MEchanical Engineering. BsC - 2013

RE: Error during close surface

(OP)
yes. i tried creating a boundary. the top surface is a single planar boundary. the error i am geting is "self intersecting edges ". How do i rectify this self intersecting edges error ?

By the way how do you want me to create the boundary?

RE: Error during close surface

I am asuuming this is made up of several individual surfaces. If this was one surface, you would get a boundry. Try joining it to find the errors. You may have to break up the join (do 1 small section at a time until you find the problematic geometry).

Also if you have healing capabilities, this will help solve your problem.

RE: Error during close surface

(OP)
Thanks japal for your interest. I am getting the error in terms of Boundary (flags denote boundaries as separate surfaces ). How do i rectify this boundary problem or how do i mk it a single boundary ?

RE: Error during close surface

Disassemble first, then try locally joining 1 area at a time to see where the issue is...
