Angular Dimensioning

Angular Dimensioning

Angular Dimensioning

(OP)
Hello All,

Using NX 7.5.

I have a general question about dimensioning that has been frustrating me for a while now. Why does angular dimensioning in the drafting environment function different than angular dimensioning in the sketching environment? In sketching, if I dimension two lines that are acute with respect to eachother, I'm given the smallest angular distance between them which is ideal in pretty much every case. In drafting, however, if I select the exact same two lines, one of the lines is projected through the intersection point of the other line and I'm given either the compliment of the angle (180 degrees - sketch angle) or by selecting Alternate Angle I get the cyclic compliment of that angle (360 degrees - (complimentary angle)).

e.g. Imagine two lines that are dimensioned in the sketch environment to be 45 degrees from each other. When I attempt to dimension them in drafting, all I can get are 180 - 45 = 135 OR 360 - 135 = 225. The arrows only point to one of the lines I selected while the other arrow points at the projected extension of the other line. This is absolutely NOT what I'm trying to show.

This is consistent whether I'm dimensioning centerlines to features, features to features, lines to feature, whatever to whatever. Its frustrating because in order to get the dimension that I'm trying to represent, I have to draw a line on the sheet that drafting will dimension "properly," dimension from that, then hide that line.

Is there something I've been doing wrong here or a work around that isn't as sloppy as what I've resorted to? Any advice would be appreciated.

-R

RE: Angular Dimensioning

(OP)
Thanks for the reply, but I already pointed out that I selected the Alternate Angle option referred to in that thread and it gives me a result that is 360 degrees minus the compliment of the angle that I'm actually interested in defining. This is the 225 degree angle that I referenced in my example. I'll try to attach a picture to this reply.

By selecting the Alternate Angle option, I get the entire circle excluding the angle I'm actually interested in...

RE: Angular Dimensioning

(OP)
Of course the picture doesn't show... Here's a different one that should work.

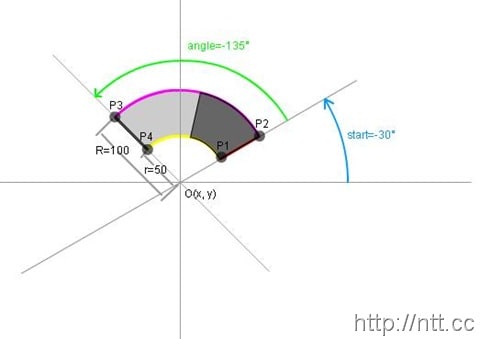

In this picture, the angle of interest would be the blue angle, but the angle returned by the angular dimensioning tool returns the green angle. Selecting the Alternate Angle button returns a value for everything except for the blue angle.
