Unsure which feature to use to create this form.

Unsure which feature to use to create this form.

Unsure which feature to use to create this form.

(OP)

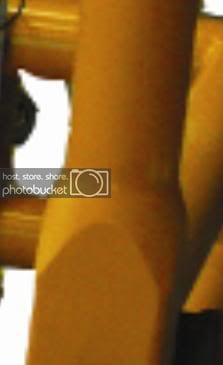

Im trying to replicate a blend like this. From a square section into a circular section.

Im rather new to CATIA and still learning hte basics. Could anyone point me in the right direction?

Much appreciate any advice or info.

Thanks.

RE: Unsure which feature to use to create this form.

I would suggest making a shaft with the smaller diameter section growing to a larger section that matches the curve then cutting the larger sections four flats with a single pocket.

RE: Unsure which feature to use to create this form.

1. "Sketch" a square to size with the desired "PAD" length.
2. Create a "Sketch" with the angle included & use "Groove" to remove the material on the solid. (The blend will create automatically)

I hope this helps!
