V5 Equivalent to V4 Curve2 æcurve-curveÆ

V5 Equivalent to V4 Curve2 æcurve-curveÆ

V5 Equivalent to V4 Curve2 æcurve-curveÆ

(OP)
It’s been a couple of years since using V4 but I need to create a surface which is completely controlled. ‘GSD multi-section surface’ doesn’t seem to allow me to select guide curves or limiting curves, just 1 spine.

RE: V5 Equivalent to V4 Curve2 æcurve-curveÆ

Which option under Multi-Section Surface are you selecting?

What License do you have?  You need to have a GSD License, which means you either need an HD2 or you need to have GSD added to your MD2 configuration. There are other configrations that include this as well.

RE: V5 Equivalent to V4 Curve2 æcurve-curveÆ

(OP)
Licenses are MD2 + GSD2.

RE: V5 Equivalent to V4 Curve2 æcurve-curveÆ

I think you mean GSD. (Generative Shape Design 2)

If that's the case, you have all of the functionality you need to make a multi-section surface.

What exactly is happening that leads you to believe that you cannot select guide curves? (limit curves are not an option in multi-section)

-----------------------------------------------------------
Catia Design|Catia Design News|Catia V5 blog

RE: V5 Equivalent to V4 Curve2 æcurve-curveÆ

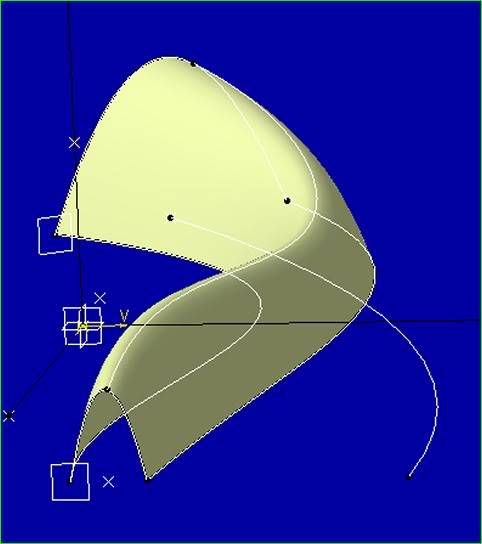

The GSD Multi-Section Surface Definition box defaults to Section Curves first - see the top line of the top white box is a solid dark line. Select the curves.

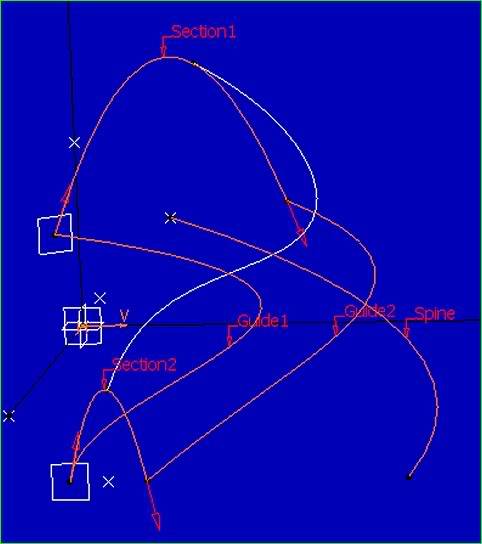

To define the Guide Curves, left click the top line of the second white box - to activate it, now the Guide Curves can be selected.

If a Spine is to be used then click Spine and click on No selection before actually selecting the curve to use as a spine.





RE: V5 Equivalent to V4 Curve2 æcurve-curveÆ

nice post Kapitan!

RE: V5 Equivalent to V4 Curve2 æcurve-curveÆ

(OP)
Thanks Guys. The problem was as simple as activating the ‘guide curves’ box. I need a V5 surfacing course.
